Features

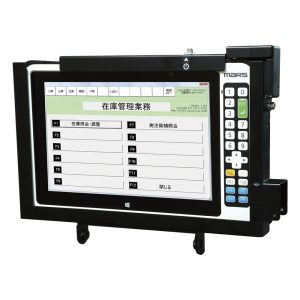

This Windows tablet-style terminal is ideal for field work such as ordering and inspection. It is equipped with an easy-to-read 10.1″ LCD screen, which is required for commercial terminals. For use with forklifts, carts and other in-vehicle terminals, the FRAME-05Fork-A (pictured left when mounted), sold separately, can be mounted on the in-vehicle frame to prevent shock and power problems and ensure safe operation.
Specification
| OS | MicrosoftR WindowsR 10 IoT Enterprise 2019 LTSC (64bit)（※1） | ||
|---|---|---|---|
| CPU | IntelR AtomR x5-E3940 1.6GHz（4-core） | ||
| memory | RAM | 4GB | |
| ドライブ | 64GB eMMC（User space: approx. 40 GB） | ||
| Display part |
10.1-inch transmissive TFT color display with LED backlight, capable of displaying WQXGA resolution (2560 x 1600 pixels)※. It can also display XGA (1024 x 768 pixels) and SVGA (800 x 600 pixels) resolutions depending on the settings. ※WQXGA resolution may not be available depending on the device or setting. |
||
| Actuator | Touch panel (capacitive type) with the following keys: 10-key, enter key, cursor (4 directions), escape key, decimal point key, backspace key, tab key, function keys (F1 to F4), volume keys, and power key. | ||
| Audio | Stereo speakers, microphone. | ||
| Interfaces | wireless LAN |
Compliant with IEEE802.11a/b/g/n. |
|
| Bluetooth | Compliant with Bluetooth Ver. 4.2+HS (Class 1). | ||
| NFC | Compliant with ISO14443 Type-A/Type-B and FeliCa. | ||
| USB | Connection: 1x USB 2.0 Type-A for barcode scanner | ||
| カメラ | Rear camera: 8 megapixels (auto focus), with LED light | ||
| Front camera: 2 megapixels | |||
| 電源 | 主電池 | Power: Lithium polymer battery (7.7V/4,950mAh) |
|
| 稼働時間 | Battery life: Approximately 8 hours (measured with JEITA Ver1.0)※2 |
||
| 充電時間（電源OFF時） | Charging time (when power is off): Approximately 3.5 hours with the charging stand, approximately 5.5 hours with the AC adapter for the main unit |
||
| Environmental durability | Dust and water resistance rated IP54※3, drop resistance of 1.2m※4 | ||
| Operating conditions | 0°C to 40°C, 20% to 85% relative humidity (no condensation) |
||
| Dimensions (W x D x H, excluding protrusions) | 301 x 187 x 18 mm |
||
| Weight (including battery) | Approximately 990g | ||
(※1) This is an embedded OS based on Windows 10 provided for exclusive machine use.
(※2) The measurement was based on the battery operating time measurement method (Ver. 1.0) of the Japan Electronics and Information Technology Industries Association (JEITA).
(※3) IP54 indicates the protection class for dustproof and waterproof.
IP5x：The equipment is not completely protected from dust intrusion, but the dust will not enter and obstruct the proper operation of the equipment.
IPx4：The equipment is protected from harmful effects of water splashes from any direction.
＊ Both are when the cover is properly closed.
(※4) Our test result based on MIL-STD-810G test method. It is a test result and does not guarantee all cases.
※Please note that product/service names and other proper nouns mentioned are trademarks or registered trademarks of their respective companies. ※Product specifications and other information are subject to change without notice.
