Features/Functions

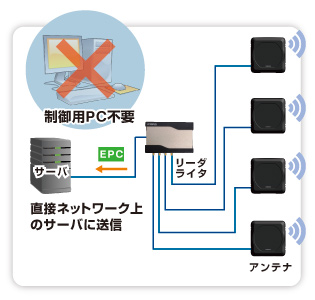

Autonomous operation reduces development man-hours for higher-level systems (auto mode).
The unit automatically takes a reading and transmits the data when the power is turned on.
Various settings can be made via a browser.
There is no need to run a complex program from a PC or other device.
Data can be sent not only to a server on the LAN, but also to a cloud server on the Internet via a router.
The server side can receive data via a web server, etc. Secure communication is possible using HTTPS.
System developers can easily start a system using RFID reader/writers.
Two models: specified low power models that do not require radio station applications, and premises radio stations (licensed stations).

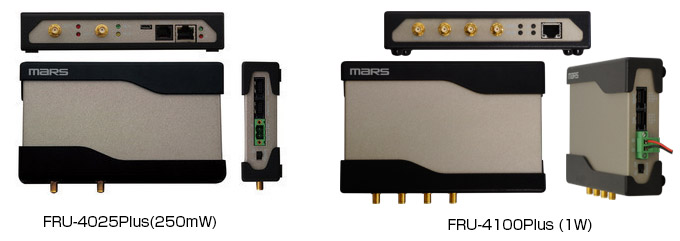

Depending on the application, you can choose between a specified low power type (FRU-4025Plus), which does not require the use of a radio station, and a high power, 4-port antenna, premises radio station (licensed station) type (FRU-4100Plus).
Supports a wide range of communication methods
LAN and serial interfaces plus DIO.
Capable of receiving digital inputs from sensors and digital outputs to peripheral devices.

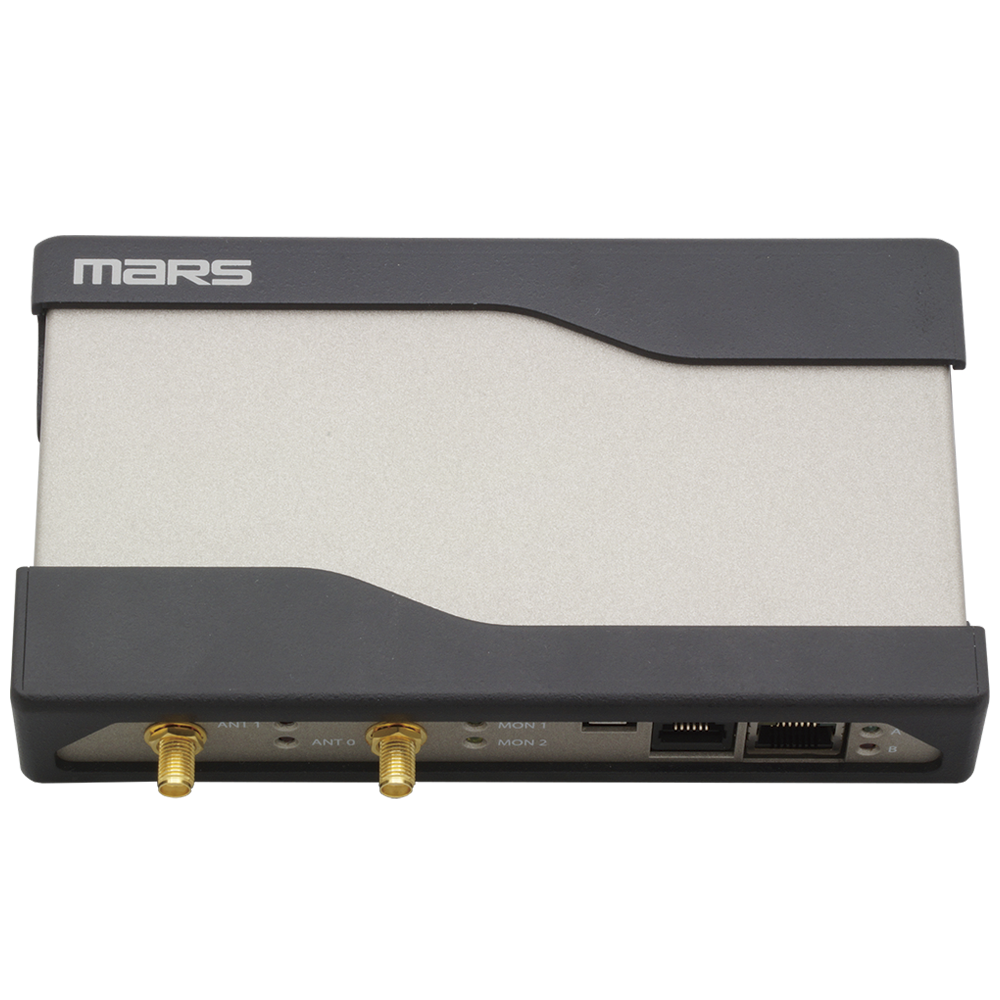

Number of antenna ports: 2 (FRU-4025Plus), 4 (FRU-4100Plus).
Supports LAN connections (socket and HTTP/HTTPS communication)
HTTP/HTTPS communication supports the GET and POST query methods and the JSON method.
Small, space-saving
Compact size, LAN connectivity and a separate antenna reader/writer allow greater freedom of installation location. A variety of connector configurations can be selected to suit the application.

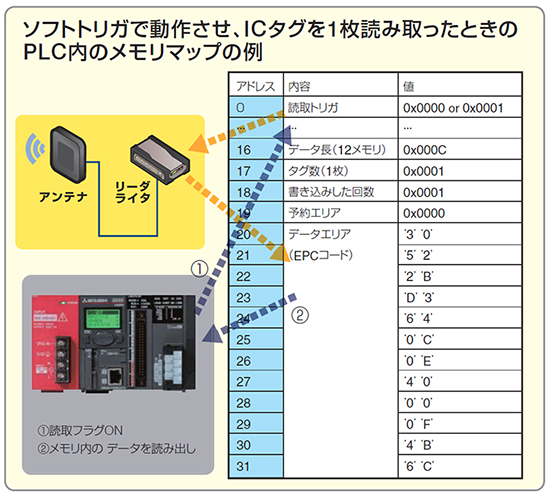

PLC link function
The PLC Link function writes the IC tag data to memory in the PLC simply by setting it up.
There is no need to set up a ladder to send complex commands.
A trigger from the PLC or a sensor etc. is used to trigger the reading detection of the IC tag, which then writes the IC tag data to the specified address in the PLC.
*Can be used with Mitsubishi Electric and other PLCs from various manufacturers via LAN connection. Please refer to the manual for details of compatible models.
920MHz帯RFID 無線局の申請について
本機をご使用いただく場合、構内無線局登録局の申請が必要となります。
Introduction video
Product Specification
| model | FRU-4100Plus | FRU-4025Plus | |
|---|---|---|---|
| Mode of operation | [Manual mode] Operated by a command from a higher level. | ||
| [Auto Mode] Equipped with intelligent functions for autonomous operation. | |||
| RFID | frequency | 916.8～920.4MHz | 916.8～922.2MHz |
| UHF RFID Standard | Compliant with ISO/IEC 1800-63(6C) (EPC Global Class1 Gen2) | ||
| Maximum power (antenna power) | 1W(30dBm) | 250mW(24dBm) | |
| Output (power) adjustment | 5 to 30 dBm, variable in 0.1 dBm steps | 10 to 24 dBm, adjustable in 0.1 dBm steps | |
| Radio station application | Required (licensed premises radio station) | Not required (specified low power radio stations) | |
| Number of antenna ports/connectors | 4・SMA-J | 2・SMA-J | |
| Connection interface | LAN port : 10Base-T / 100Base-TX (full duplex) | ||
| Debug port : RS-232C | |||
| I/O | DIO 入力・出力各2点 | ||
| Power source | Input voltage | 12-24 V DC (100 VA AC adapter can be used) | |
| Maximum power consumption | 10W | 7W | |
| Dust and spill resistant | IP30 | ||
| Operating environment | Operating Temperature and Humidity | 0-40°C (non-condensing) / 20-85%RF (non-condensing) | 0 to 50°C (non-condensing) / 20 to 85%RF (non-condensing) |
| Storage temperature and humidity | -20 to 60°C (non-condensing) / 10 to 90% RF (non-condensing) | ||
| External dimensions (*excluding projections) | 158（W）×102（D）×29（H）ｍｍ | 158（W）×92（D）×29（H）ｍｍ | |
| weight | 355g | 340g | |
| Other. | With initialisation button | ー | |
