What is PLC Link?

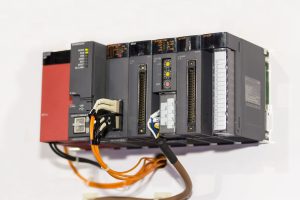

Programmable Logic Controllers (PLCs) are now an essential part of the automated control of production/logistics sites around the world, and the devices connected to and controlled by PLCs are becoming more diverse every year.
PLCs were developed as an alternative to the relay circuits typical of conventional controllers. They are a type of so-called miniature computer and, like other computers, use a microprocessor for the core parts and are similar in that they are software-controlled. PLCs can control the operation of equipment and machines according to a pre-defined programme, in a pre-defined sequence and under pre-defined conditions, and can also control position, speed and continuous quantity, as well as exchanging information between devices.
Benefits of implementation
Benefits of PLC links
- Writes to the designated memory in the PLC by simply setting the scanner.
- No RS-232C or LAN communication programme required
- Programmable only with the PLC knowledge you have always developed.
- No need to know scanner commands.
- Easy to check operation.
List of compatible PLCs
LAN connection
Mitsubishi Electric
Series name | Connection method | Model |
---|---|---|
MELSEC series | CPU-integrated port | Q03/04/06/10/13/20/26/50/100UDECPU/L02CPU/06CPU/26CPU-BT/iQ-R04/08/16/32/120 |
LAN Unit | QJ71E71-100/-B5/-B2 |
Omron Corporation
Series name | Connection method | Model |
---|---|---|
SYSMAC series | CPU-integrated port | CJ2H-CPU□-EIP(built-in)/ CJ2M-CPU□(built-in)/ SYSMAC One NSJ |
LAN Unit | CP1W-CIF41 CJ1W-ETN21 CJ1W-ETN11 CS1D-ETN21D CS1W-ETN21 CS1W-ETN11 CS1W-ETN 01 CJ1W-ETN21 CJ1W-ETN11 CJ1M-CPU13-ETN CJ1M-CPU12-ETN CJ1M-CPU11-ETN |
Keyence
Series name | Connection method | Model |
---|---|---|
KV Series | CPU-integrated port | KV-5000/5500 |
LAN Unit | KV-LE21V/KV-NC1EP |
RS-232C connection
Mitsubishi Electric
Series name | Connection method | Model |
---|---|---|
MELSEC series | FX3 Series. Communication function expansion boards Special communication adapters | FX3G-232-BD FX3U-232-BD FX3U-232ADP-MB |
RS-232C Communication Unit | QJ71C24N/-R2 LJ71C24/-R2 |
Omron Corporation
Series name | Connection method | Model |
---|---|---|
SYSMAC series | CPU-integrated port | CS1 series CJ1 series CJ2 series※ CP1 series※ |
RS-232C option board | CP1W-CIF01 CP1W-CIF11 CP1W-CIF12 | |
RS-232CCommunication Unit | CJ1W-SCU□□(-V1) CS1W-SCU□□-V1 | |
Communication board | CS1-SUB□□-V1 |
※RS-232C option board required depending on model.
Keyence
Series name | Connection method | Model |
---|---|---|
KV Series | CPU-integrated port | KV-3000 KV Nano series |
Communication Unit | KV-L20V/L20R KV-N10L/NC10L/NC20L |
