Features/Functions
The MCR-H720 is ideal for reading 2D symbols directly on printed circuit boards and glass surfaces. This high-resolution model is even more specialised than the conventional MCR-H700 for reading very small marks.

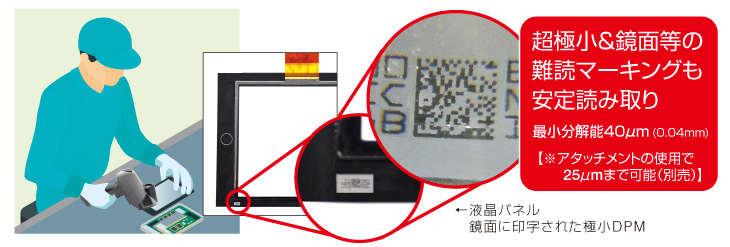

Stable reading of ultra-low and difficult-to-read direct markings
Ideal for reading 2D symbols marked directly on printed circuit boards and glass surfaces. It can handle even smaller marks than conventional machines.
Lowest resolution 40 µm (0.04 mm)
*Up to 25 µm is possible with the use of attachments (sold separately).
Easy reading settings with button operation on the main unit
One-push automatic adjustment with function button
Easy to set up with intelligent automatic tuning function (※1) and Easy Setup software. The system frees you from the tedious tuning work inherent in direct marking.
※1. The MCR-H720 selects the appropriate process from the preset data. It meets the need for immediate use, with only button operation on the main unit.

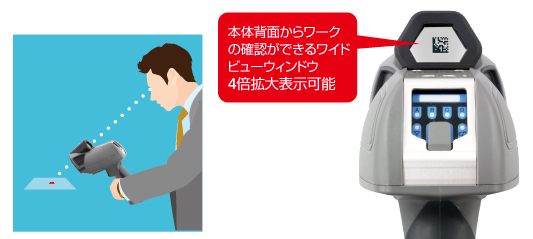

Wide-view window for easy aiming
The large reading window makes it easy to aim and read small 2D symbols that were difficult to aim at due to their being hidden behind the reader. Designed with rubber cushions for shock resistance.
Easy-to-read configuration tool allows anyone to make the optimum settings
You can easily find the optimum settings by selecting the illumination and image processing while viewing the read image in real time.
The Table Mode function allows you to set up reading settings for a wide range of materials, so that in most cases you can read without having to make any settings.
Equipped with PLC link function (RS-232C model)
If the barcode data write memory address in the PLC is set in the scanner, the read barcode data is automatically written to the designated memory The programming of the PLC is only the memory monitoring logic, which is usually familiar to the designer. Of course, the read/write data is also handshaked using the PLC memory.
Wireless (Bluetooth) models
Reading results can be transmitted wirelessly (via Bluetooth communication) to the host PC, reducing reading range limitations and improving operability.
The Dedicated Bluetooth receiver MBA-300 is available in USB, RS-232C and Ethernet models.
Maximum Bluetooth range (reference values): Approx. 10 m in line of sight.
※Varies depending on obstacles (e.g. human bodies, metal walls, etc.) and radio wave conditions.
※Battery charger (MBC-700) and AC adapter sold separately.
※Bluetooth receiver (MBA-300) sold separately.
※MCR-H720B and TMA-6000/U are discontinued.

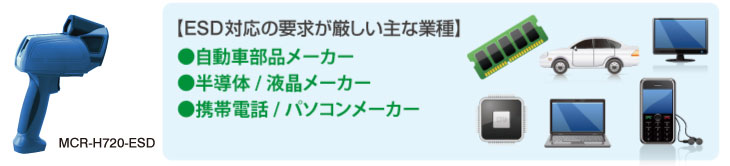

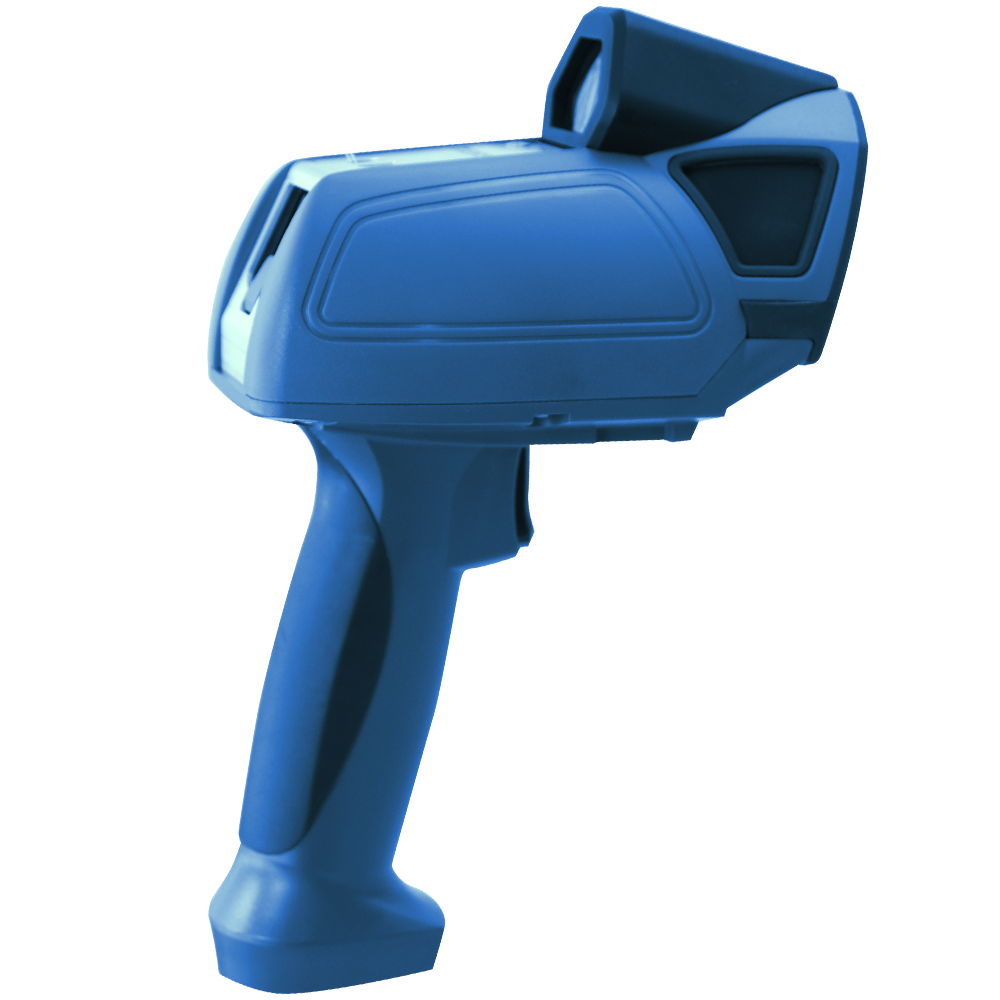

Electrostatic Discharge (ESD) models available
We are one of the few manufacturers who have been involved in the research and development of Anti-Electrostatic Discharge models for many years.
Countermeasures against the destruction and degradation of microcontrollers due to ESD have become an essential item in the manufacturing of electronic components, including liquid crystal devices, and are attracting the attention of finished product manufacturers as an important item for reliability assessment.
Our anti-ESD scanners use materials that are carbon-free, have low ionic contamination and low outgassing, and incorporate new technologies.
Introduction video
Product Specification
| model | MCR-H721B | MCR-H720U | |
|---|---|---|---|
| Image Sensor | 1/3-inch CMOS B/W 1280(X) × 960(Y) (approx. 1.2 million pixels) | ||
| Correspondence code 2D code | Data Matrix(ECC200)、QR Code / Micro QR Code | ||
| Reading angle | ・Workpiece and reading window surfaces are parallel ・Tilt direction free |
||
| Communication interface | ・Bluetooth 3.0 Class2/USB2.0 (Full Speed)(For setting up). | ・USB2.0 (Full Speed) | |
| Bluetooth Maximum communication distance (reference) | Approx. 10 m in line of sight *Varies depending on obstacles (e.g. human body, metal, walls, etc.) and radio signal conditions. | ー | |
| Power supply rating | Supply voltage | DC 5 V ± 5 % | |
| Average power consumption | Approx. 1500 mA (with charging table installed) | Approx. 500 mA | |
| Approx. 500 mA (with USB cable connection) | |||
| Dedicated battery | Lithium-ion battery Rated voltage 3.7 V Capacity 2,400 mAh | ー | |
| Continuous operating time | Approx. 10 hours. (※1)(※2) | ー | |
| Charging time | Approx. 4.5 hours (with dedicated charging stand and AC adapter) | ー | |
| environmental friendliness | Ambient operating temperature | 10-40°C (during charging) (*3), 0-40°C (during normal use) | 0～40℃ |
| Ambient storage temperature | -20～60 ℃ | ||
| Operating ambient humidity | 35 to 85% RH (condensation not possible) | ||
| Storage Ambient humidity | 35 to 85% RH (condensation not possible) | ||
| Vibration resistant | 10 – 55 Hz Amplitude 1.5 mm constant / 3 directions x 1 h each (※2) | ||
| Protection class | IP5X（※4） | ||
| Outer dimensions | 216(H) × 80(W) × 152(D) mm | ||
| weight | 430g(includes battery) | 365ｇ(Cables not included) | |
| lighting | White LED | ||
| Minimum cell size | 40μm(0.04mm) 【※Up to 25 µm (0.025 mm) with attachments (sold separately)】 | ||
| Reading distance（※5） | 0～3mm | ||
| Read area（※6） | 12 mm horizontal × 9 mm vertical | ||
| Pointer | LED pointer (red) | ||
| Case material | ABS and elastomer resins | ||
| Option | Charging cradle: MBC-700 | ||
※1 With new batteries, room temperature, 1 scan every 3.6 seconds, backlight at specified maximum.
※2 Tested to our standards, not guaranteed.
※3 If the ambient temperature is outside the specification range, the battery may not be recharged.
※4 Please contact our sales department for information on ESD models.
※5 When using our specified symbols. The distance is based on the reading window area.
※6 It depends on the setting of the reading area in table mode.
