Features/Functions
Light and compact, yet highly functional. Strong at reading damaged and difficult-to-read symbols
Advanced decoding capability reads damaged and difficult-to-read symbols.
Anti-glare feature enables reading of symbols printed on mirrored, glass or curved surfaces, making it suitable for a wide range of applications.
Lightweight design for long working hours.
Dual lenses for ultra-small 2D codes to wide barcodes
Equipped with two lenses, short focus & wide angle, covering a wide reading range from very small 2D codes to wide barcodes.

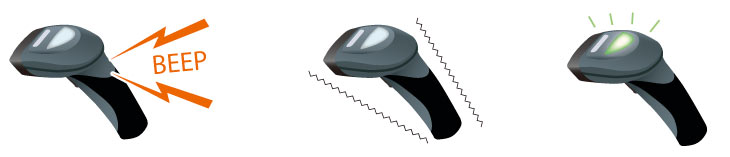

Settings such as sound, light and vibration can be adjusted to suit the operation.
4-stage adjustable buzzer and vibration function, LED indicator, etc.

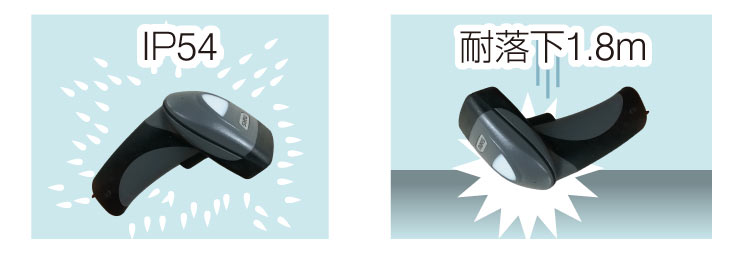

IP54 environmental rating / high durability
Dust and water resistant to IP54 standards.

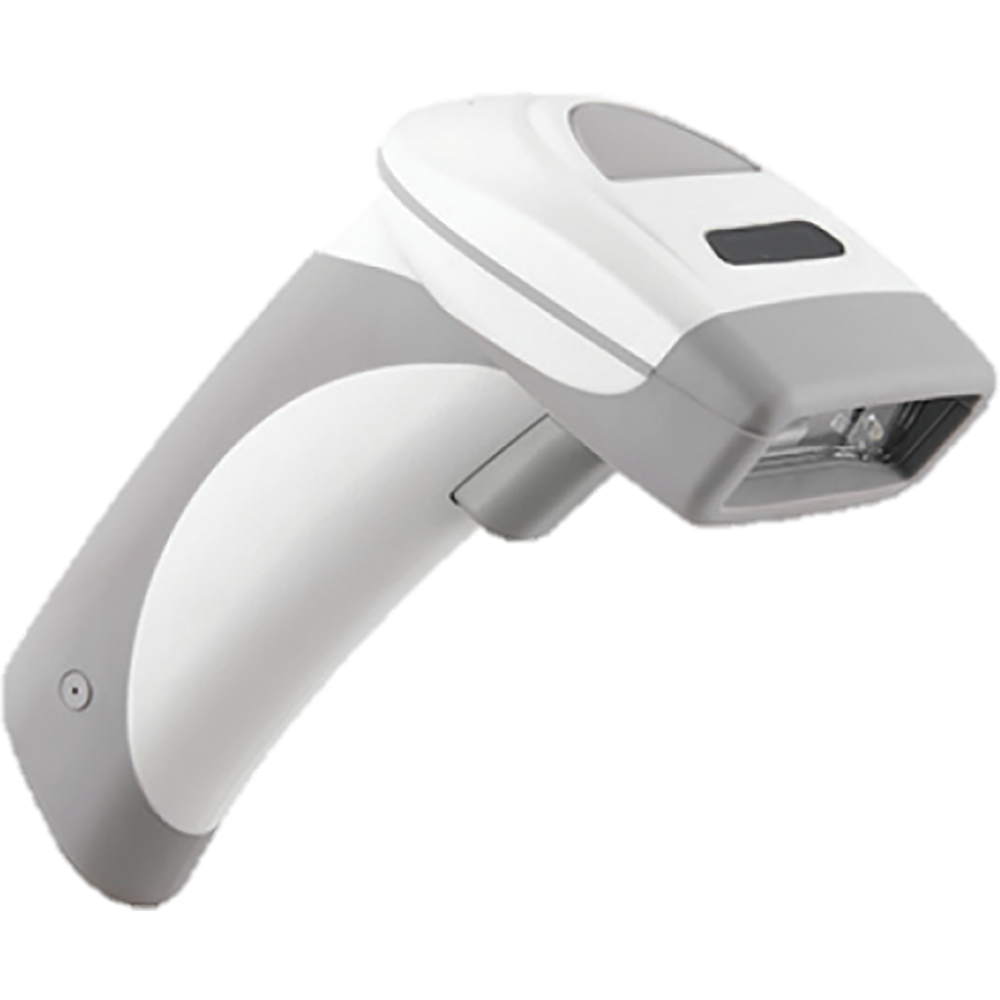

Medical grade model that withstands wiping with a wide range of disinfectants MCR-H200W
Withstands wiping with a wide range of disinfectants! Healthcare model MCR-H200W range. Resistant to a wide range of chemicals and disinfectants.

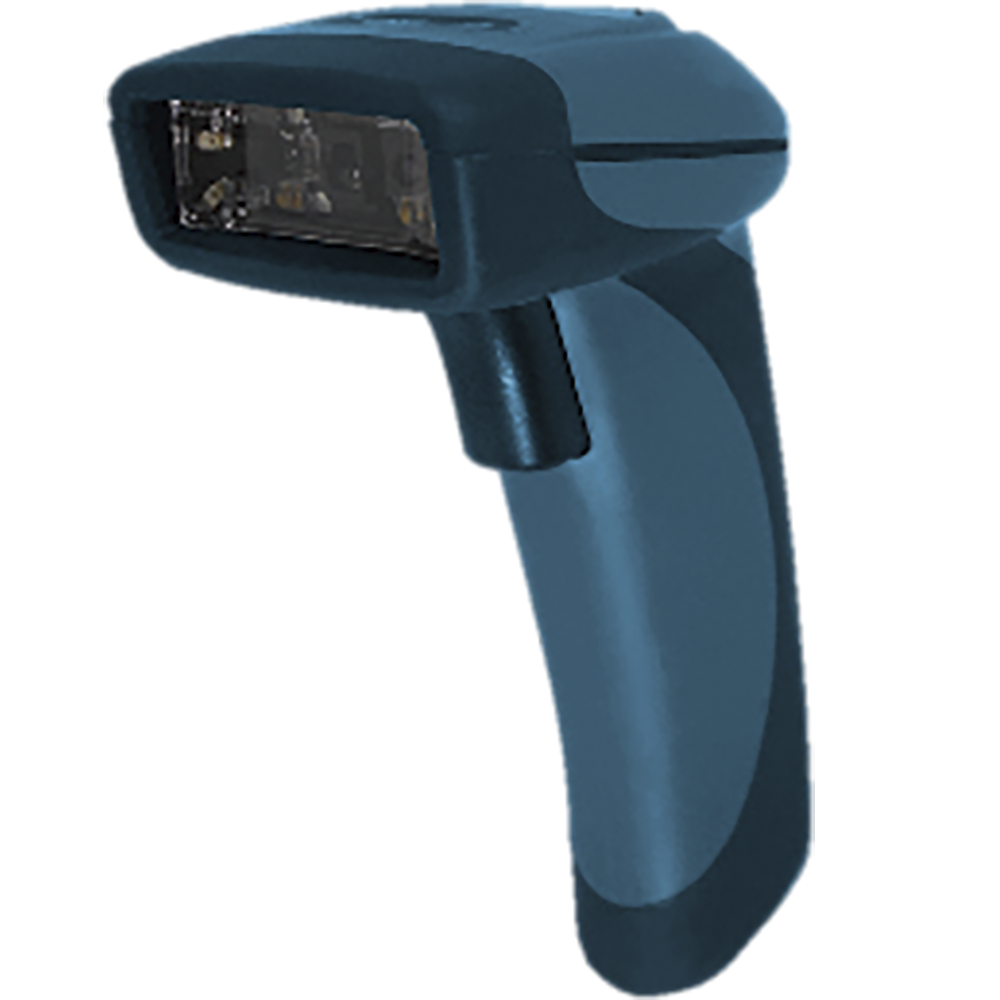

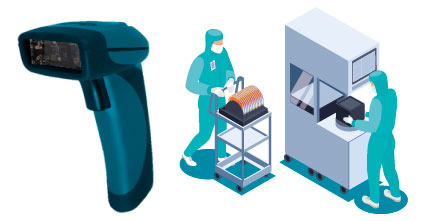

Electrostatic discharge (ESD) models
Electrostatic Discharge (ESD) models are also available in response to feedback from sensitive manufacturing environments such as electronic components.
>>ESD Compliant Model (MCR-H200-ESD) Introduction here.

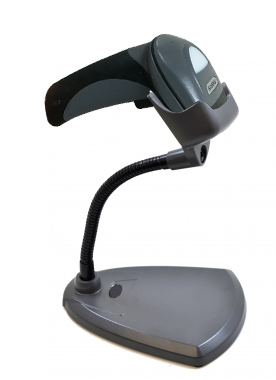

Special stand available (optional)
Sold separately: Reading stand
（Hands-free reading possible.）
(CRA-US2/CRA-US3)
Introduction video
Product Specifications
| model | MCR-H200 / MCR-H200-ESD (anti-static model), MCR-H200HD-ESD (high-resolution anti-static model) / MCR-H200W (Healthcare model) |
|---|---|
| Interfaces | RS-232C, USB 2.0 （HID keyboard, virtual COM port） Can be changed by replacing the cable. |
|
＜USB Interface Specifications＞ ＜RS232C Interface Specifications ※AC adapter required separately |
|
| Application Code | 2D: DataMatrix(ECC200), DataMatrix Rectangular Extension, Grid Matrix, Han Xin,MaxiCode, QR Code, MicroQR, QR Model 1,PDF417 |
| 1D: JAN/EAN/UPC, ITF, Codabar, Code39, Code128, GS1-128, GS1 DataBar(RSS), Code93,Code11, Code32, PharmaCode, BC412, IATA 2 of 5, Hong Kong 2 of 5,Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic | |
| Postal Code： Japan Post, Australian Post, Canada Post, Intelligent Mail, KIX Code,Korea Post, Post-Net, Planet, UK Royal Mail, UPU ID-tags | |
| Image Sensor | CMOS 1.2 megapixels (1280 x 960 pixels) |
| Current consumption | 350 mA or less in operation / 75 mA in standby |
| Operating temperature/humidity | -20°C to 55°C / 5 to 85% (non-condensing) |
| Storage temperature/humidity | -30°C to 65°C / 5 to 85% (non-condensing) |
| protective structure | IP54 |
| Shock Vibration | Multiple drops from 2.0m to concrete (no loss of reading performance) |
| Ambient illuminance | Less than approx. 97,000lux |
| Pointer light source | Single, blue aiming bar, 470 nm |
| Print Contrast | 15% minimum reflectance difference |
| Pitch | ±65° (front-back direction) |
| Skew | シンボルに平行な平面から±60°（左／右） |
| Tilt | ±180° |
| Outer dimensions | 52(W) x 132(H) x 77(D)mm |
| weight | 116g (without cable) |
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
