Features/Functions
Light and compact, yet highly functional. Strong at reading damaged and difficult-to-read symbols.
Equipped with advanced decoding capabilities, it reads damaged and difficult-to-read symbols.

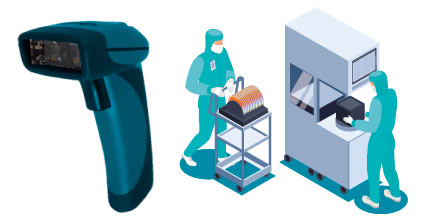

Anti-electrostatic discharge (ESD) model for safe use in precision equipment manufacturing environments.
Lightweight design for long working hours without fatigue.

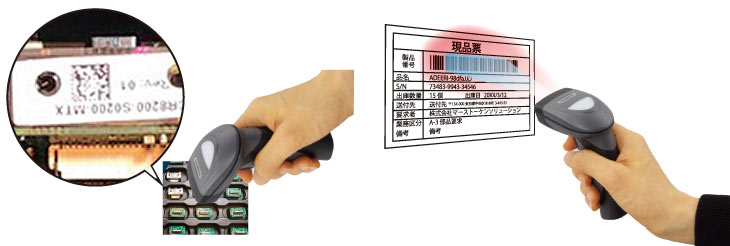

Dual lenses for ultra-small 2D codes to wide barcodes
Equipped with two lenses, short focus & wide angle, covering a wide reading range from very small 2D codes to wide barcodes.
Introduction video
Product Specification
| model | MCR-H200-ESD (anti-static model), MCR-H200HD-ESD (high-resolution anti-static model) |
|---|---|
| Interface |
＜USB Interface Specifications＞ |
| ＜RS232C Interface Specifications＞ ※AC adapter required MCR-H200(R)-ESD：ESD model/RS232C cable/ESD collar MCR-H200HD(R)-ESD：High resolution ESD model/RS232C cable/ESD colour |
|
| Application Code | 2D: DataMatrix(ECC200), DataMatrix Rectangular Extension, Grid Matrix, Han Xin,MaxiCode, QR Code, MicroQR, QR Model 1,PDF417 |
| 1D: JAN/EAN/UPC, ITF, Codabar, Code39, Code128, GS1-128, GS1 DataBar(RSS), Code93,Code11, Code32, PharmaCode, BC412, IATA 2 of 5, Hong Kong 2 of 5,Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic | |
| Postal Code： Japan Post, Australian Post, Canada Post, Intelligent Mail, KIX Code,Korea Post, Post-Net, Planet, UK Royal Mail, UPU ID-tags | |
| Image Sensor | CMOS 1.2 megapixels (1280 x 960 pixels) |
| Current consumption | 350 mA or less in operation / 75 mA in standby |
| Operating temperature/humidity | -20°C to 55°C / 5 to 85% (non-condensing) |
| Storage temperature/humidity | -30°C to 65°C / 5 to 85% (non-condensing) |
| protective structure | IP54 |
| Shock and Vibration Resistance | Multiple drops from 2.0m to concrete (no loss of reading performance) |
| Ambient illuminance | Less than approx. 97,000lux |
| Pointer light source | Single, blue aiming bar, 470 nm |
| Print contrast | 15% minimum reflectance difference |
| Pitch | ±65° (front-back direction) |
| Skew | ±60° from plane parallel to symbol (left/right) |
| tilt | ±180° |
| Outer dimensions | 52(W) x 132(H) x 77(D)mm |
| weight | 116g (without cable) |
| Option. | AUTOSTAND/Clamp stand/wall-mounted holder |
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
