DPM-compliant fixed 2D code scanner with C-mount lens specification MCR-F600

Features/Functions

Suitable for a wide range of applications

The C-mount lens and external illumination can be used for a wide range of reading areas, reading distances and reading objects.

Compact design fits into tight spaces

Space-saving design measuring 51 x 49 x 87 mm (excluding projections).
Equipped with LAN interface for centralised management of scanners installed in different locations in the factory.

Best-in-class reading performance/DPM (Direct Part Marking) support

Best-in-class decoding technology for speed, accuracy and resistance to dirty or damaged barcodes. Ideal for direct part marking.

Reading on the move

Uses state-of-the-art CMOS sensors. Suitable for reading fast moving objects.

External USB memory port

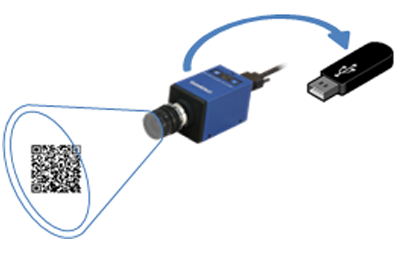

USB memory port allows large volumes of read OK/NG images and log data to be stored without a PC. Can be used for analysis. Copying and
and reading of settings is also possible.

Analogue video output

Reading data can be displayed in addition to the image.
(superimpose function).

Product Specification

model		MCR-F600
Interface		Ethernet （10Base-T、100Base-TX）
		RS-232C（1200 bps ～ 115.2 kbps）
USB host interface		USB 2.0 compatible (for USB storage only)
Video signal output		NTSC/PAL compliant monochrome composite
Reading angle		PITCH: Depends on lens, lighting conditions, etc.
		Skew: depends on lens, lighting conditions, etc.
		Tilt: 360°
Lens Specification		C-mount (external)
Photosensor	Image Sensor	1/3-inch monochrome CMOS image sensor
	Number of effective pixels	1280(X) × 960(Y) (approx. 1.2 million pixels)
Power source	Rated voltage	DC power supply: DC 12V/24V±10%.
	Current consumption	DC power supply: approx. 0.5 A @ 12 V DC power supply: approx. 0.25 A @ 24 V
Digital input		Photocoupler isolation x 1 point
		Input resistance: 2.2 kΩ OFF voltage: 0 to 0.8 V ON voltage: 10.8 to 28 V
Digital output		Photocoupler isolation x 3 points Maximum rating 30 V DC 50 mA
Environmental friendliness	Operating temperature	0 ～ 40℃
	Operating humidity	35 – 85% R.H. (non-condensing)
	Storage temperature	-20 ～ 60℃
	Storage humidity	35 ～ 85%R.H. (non-condensing)
	Vibration resistant	10 – 55 Hz Amplitude 1.5 mm (full width) / X, Y, Z direction 1 hour (*1)
	protective structure	IP4x
Application Code	1D Code	Codabar,Code39,Code128/GS1-128,Code93,GS1 DataBar,ITF,UPC/EAN/JAN
	2D Code	Data Matrix(ECC200),QR Code/Micro QR,AztecCode,PDF417,Composite
Outer dimensions		51(H)×49(W)×87(D)mm (not including projections)
weight		280g
