Features/Functions

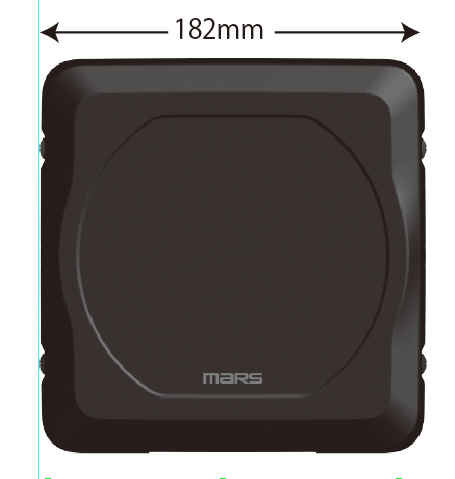

General purpose antenna(UAT-001G 、UAT-002）
Want to improve operational efficiency by reading large numbers of tags in batches
(UAT-001G 、UAT-002）

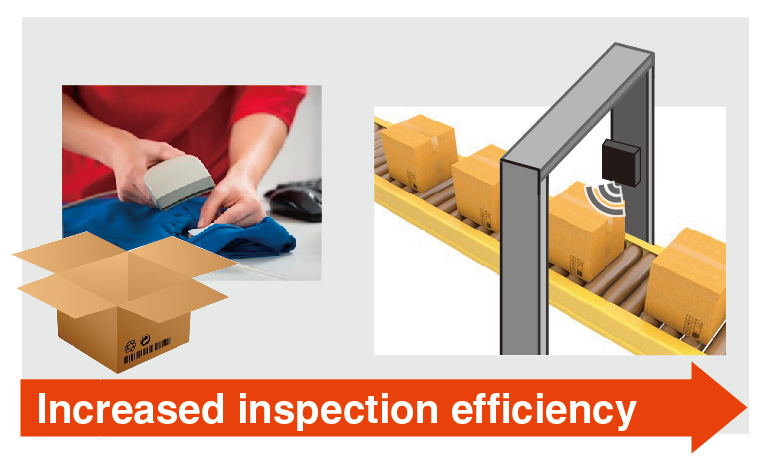

Automatic transport batch inspection. Allows incoming inspection while packed.

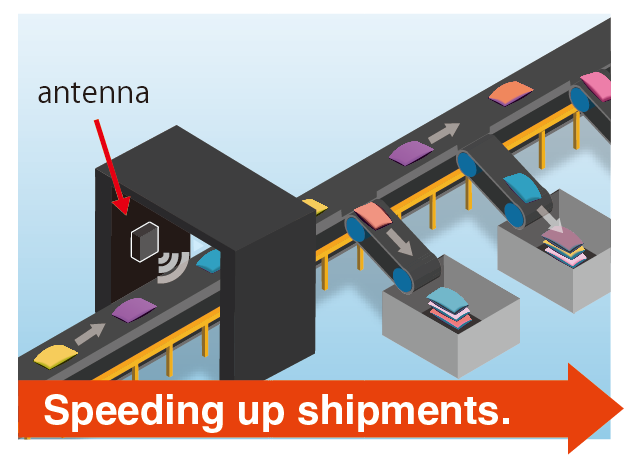

Controlled destination sorting on automated conveyor lines. Speeds up shipping.

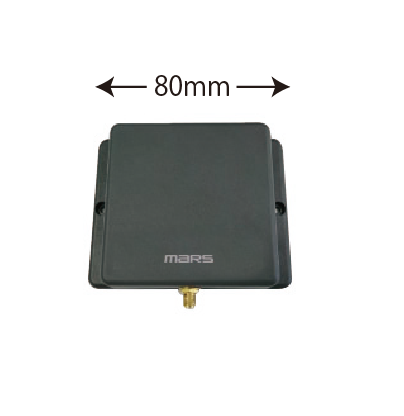

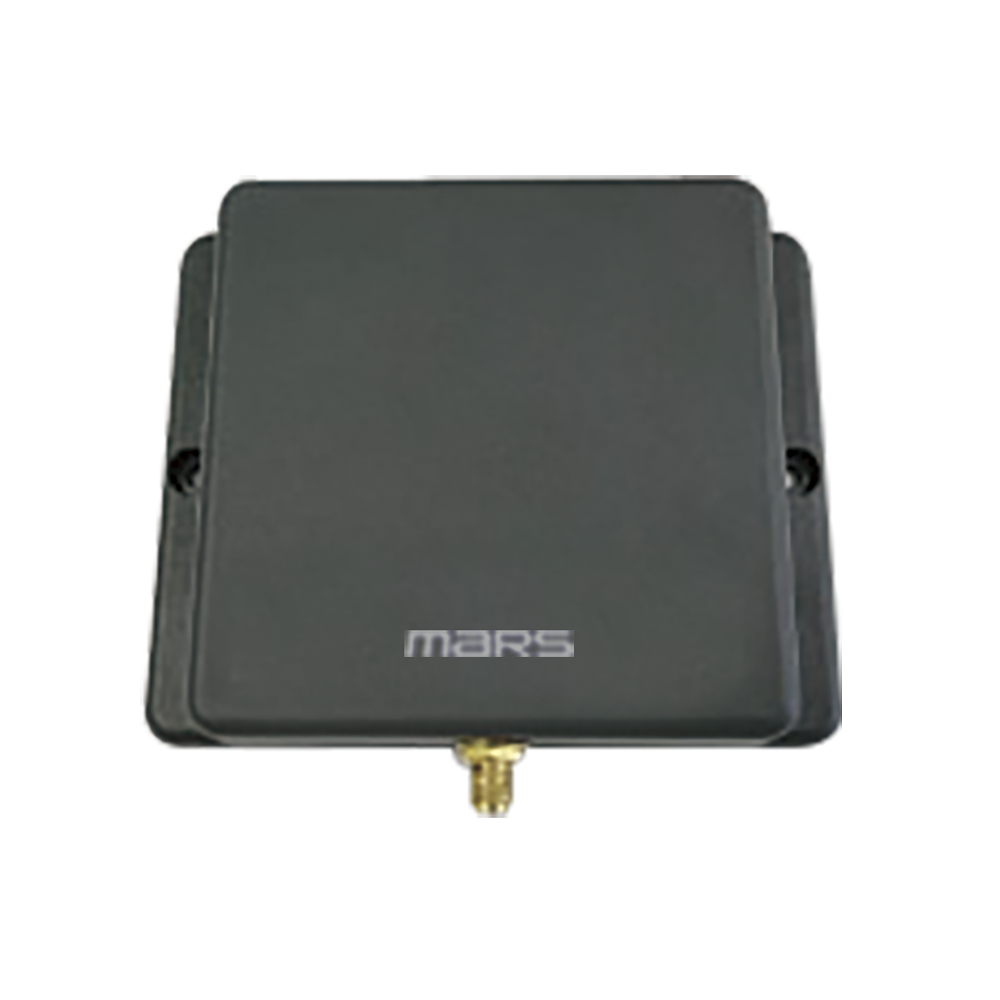

Proximity antenna（UAT-006）

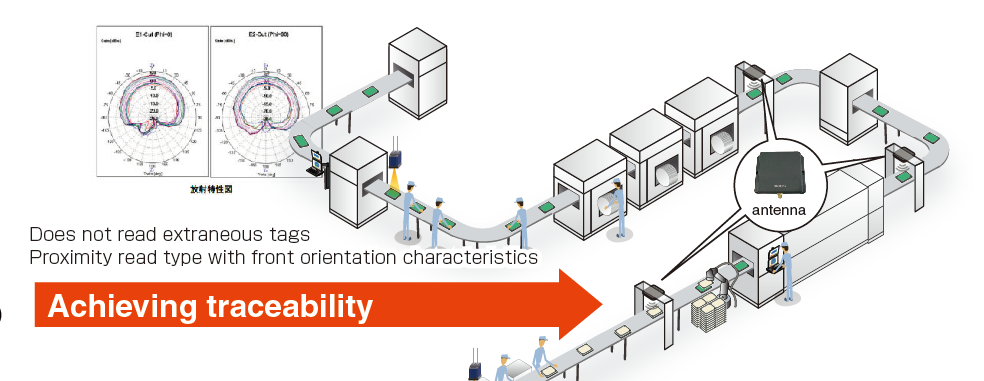

When you want to achieve traceability by identifying and reading a single tag.
（UAT-006）
Product Specification
| model | UAT-002 | UAT-001G | UAT-006 | |
|---|---|---|---|---|
| Polarisation characteristics | Circular polarisation | |||
| Frequency | 917～925MHz | |||
| Applicable reader/writer | MRU-F5100JP/FRU-4100Plus | MRU-F5025/MRU-F5100JP/FRU-4025/FRU-4025Plus | MRU-F5025/MRU-F5100JP/FRU-4025/FRU-4025Plus/FRU-4100Plus | |
| gain | 6 dBi or less | 3 dBi or less | 2.2 dBi or less | |
| Operating environment | Operating temperature | 0-40°C (no condensation) | 0 to 50°C (no condensation) | |
| Operating humidity | 20-85% RF (no condensation) | |||
| Storage temperature and humidity | -20 to 60°C (non-condensing) / 10 to 90% RF (non-condensing) | |||
| Dust and spill resistant | ー | IP52/JIS Drip-proof Type II (*1) | ー | |
| External dimensions *Excluding projections. | 182（W）×33.5（H）×182（D）mm | 100.6（W）×23.5（H）×80.6（D）mm | ||
| weight | Approx. 590g | 650g | 80g | |
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
