Features/Functions
Switchable interface between HID mode and virtual COM mode [ICU-800D]
The ICU-800D keyboard input model is ready to use by simply connecting it to a PC!
[ICU-800D] By simply connecting the ICU-800D to an existing employee authentication or point management system, the existing system can be upgraded to an IC card compatible system without any modifications.
HID keyboard input supported [ICU-800D]
Automatic conversion of read data to keyboard input without the need for programme control from the host.
Virtual COM mode, which does not require host control, is also available [ICU-800D].
Data read from the IC card can be automatically sent to the USB virtual COM port.
No command control is required from the host system to instruct the start of reading or to transmit data.
NFC IP-2 (ISO/IEC 21481) compliant
Mifare ISO/IEC 14443 Type A
FeliCa (Encryption not supported)
ISO/IEC 14443 Type B
ISO/IEC 15693
*ICU-800D is read-only.
Up to 32 units can be connected [ICU-800].
The interface is provided as standard and allows daisy chain connection of up to 32 units.
*The ICU-800D cannot connect more than two units in an RS485 daisy chain, only one unit can be connected.

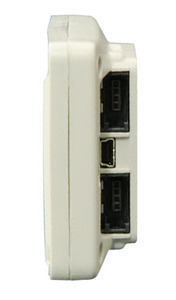

USB, RS-485, RS-232C and DIO standard features
In/Out Two DIOs with two points each are built in.
[ICU-800D] Digital output and LEDs on the board can be lit when reading if set in the configuration software.
[ICU-800] External switch inputs and confirmation LEDs can be controlled by the host’s programme control.

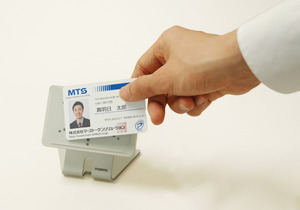

Reader section has variable orientation

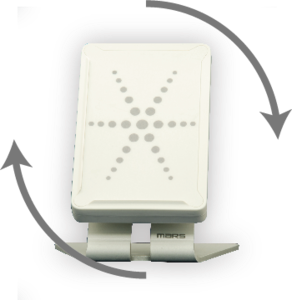

Vertical/horizontal switchable to suit the application (*Pedestal is optional).
Suitable for device integration
When the table stand is removed, the unit becomes an embedded NFC reader/writer suitable for POS cash registers, payment terminals and point-of-sale terminals.
Introduction video
Product Specification
| display | |
|---|---|
| LED | 3-colour LED (blue, red, purple) *External command control |
| 上位I/F | ICU-800 : USB1.1（USB Virtual COM）、RS-232C、RS-485 ICU-800D: USB1.1（USB HID interface or HID equivalent when in USB virtual COM mode）、and RS-232C/RS-485 (HID equivalent) ※When the ICU-800D is set to read, the connection is made via USB virtual COM mode or RS-232C/CMOS/RS-485. |
| RFID reader/writer | |
| Carrier frequency | 13.56MHz |
| Communication Distance | 30mm |
| Target IC tag | MIFARE Classic(1K,4k)、MIFARE Ultralight、FeliCa、FeliCa lite、ISO/IEC14443 TypeB、ISO/IEC15693(I-CODE SLI ,etc ) ※ICU-800D supports read only. |
| power supply | |
| Power source | USB connection: USB bus power Non-USB connector: DC+5V±5% |
| Current consumption | 350mA max |
| Usage environment | |
| Temperature/humidity | 0 to +50°C / 20 to 85%RH (no condensation) |
| Outer dimensions | |
| (Main unit only) | Approx. 95 (W) x 63 (D) x 25 (H) mm |
| (when stand is mounted) | Approx. 91 (W) x 57 (D) x 97 (H) mm (when mounted vertically) |
| weight | Approx. 65g (without stand) (approx. 120g with stand) |
