Features

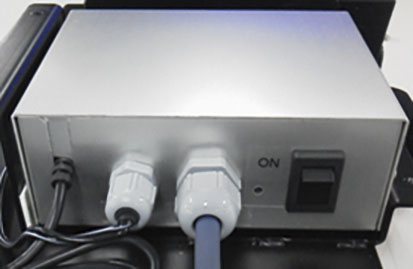

The TCP-05Fork-win10 panel computer with Windows 10 is able to operate safely, preventing vibration, shock, and power supply issues, by integrating a proprietary stabilized power supply unit into the dedicated vehicle-mounted frame, FRAME-05Fork-A. Installation onto different frames for each vehicle type is also flexible and possible with dedicated tools, making it a specification that thoroughly pursues the special requirements of vehicle-mounted terminals. Even in the event of a power outage, it can operate independently for up to 7 hours with its built-in battery.
Specifications
| model | FRAME-05Fork-A |
|---|---|
| Compatible truck type | Reach stackers, counter stackers, etc. |
| Mounting structure | Pillar mounting, head guard suspension, side mounting, etc. |
| Mounting method | Specialist technician sent to install and connect power supply wiring |
| Power unit operating temperature and humidity | 0°C to 40°C/10% to 90%RH (no condensation) |
| Storage temperature and humidity | -20°C to 60°C/10% to 90%RH (non-condensing) |
| Vibration resistance | Acceleration 3G test performed. |
| Option | 3 USB expansion ports (e.g. for connecting a barcode reader) Keyboard holder, keyboard holder |
