Features/Functions
No radio station application required
As a specified low power type, no cumbersome radio station application is required and the system can be used immediately.
All the features in a compact body!
LAN, USB and DIO interfaces.
Capable of synchronous signal (trigger) input from the system and contact output to peripheral devices.

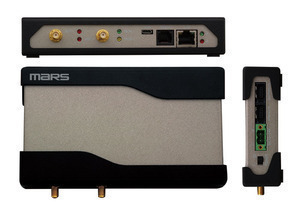

Small, space-saving
The compact size and LAN and USB connectivity of the reader/writer allows for a high degree of installation freedom. A variety of connector configurations can be selected to suit the application.
Supports a wide range of communication methods
Supports USB and LAN connections (socket communication)
Introduction video
Product Specification
| model | FRU-4025 | ||
|---|---|---|---|
| RFID | frequency | 916.8～922.2MHz | |
| UHF RFID standard | Compliant with ISO/IEC 1800-63(6C) (EPC Global Class1 Gen2) | ||
| Maximum output (airborne power) | 250mW(24dBm) | ||
| Output (power) adjustment | 10 to 24 dBm, adjustable in 0.1 dBm steps | ||
| Radio station application | Not required (specified low-power radio stations) | ||
| Number of antenna ports/connectors | 2・SMA-J | ||
| Connection interface | USB2.0（Maximum transfer speed 12 Mbps.） | ||
| LAN port : 10Base-T / 100Base-TX (full duplex) | |||
| Debugポート : RS-232C | |||
| I/O | DIO 2 points each for input and output | ||
| power supply | Input voltage | 12-24 V DC (100 VA AC adaptor can be used) | |
| Maximum power consumption | 7W | ||
| Dust and spill resistant | IP30 | ||
| Operating environment | Operating Temperature and Humidity | 0 to 50°C (non-condensing) / 20 to 85%RF (non-condensing) | |
| Storage temperature and humidity | -20 to 60°C (non-condensing) / 10 to 90% RF (non-condensing) | ||
| External dimensions (*excluding projections) | 158（W）×92（D）×29（H）ｍｍ | ||
| weight | 320g | ||
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
