Features/Functions

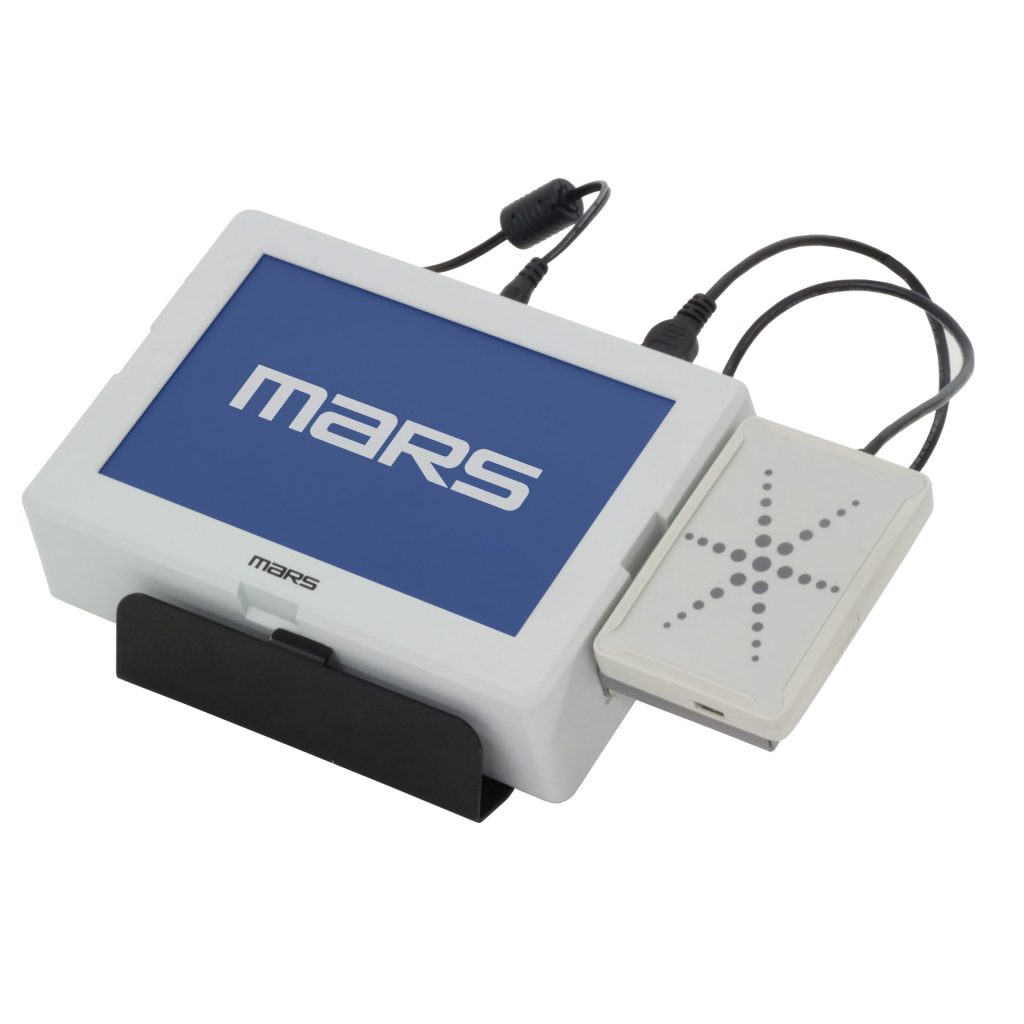

It can also be used as a reader/writer integrated device by combining with an NFC IP-2 compatible reader/writer.
●Supported IC cards
MIFARE Classic(1K,4k)、MIFARE Ultralight、FeliCa、FeliCa lite、ISO/IEC14443 TypeB、ISO/IEC15693(ICODE SLI ,etc )
A rich set of interfaces suitable for industrial use.
Equipped with multiple interfaces as standard, including RS-232C, USB, wired LAN, and DIO.
It is equipped with a rich set of external interfaces as standard that can be used for collecting data from medical devices, barcode readers, magnetic card readers, sensors, as well as controlling various industrial control equipment such as patrol lamps.
Can be placed vertically or horizontally
Vertical or horizontal mounting can be selected according to the usage scenario.
A 7-inch touch panel that can be operated even with gloves on.
The 7-inch touch panel adopts a resistive film type that enables operation even with gloves on in manufacturing sites.
- 1280×800 dots
- Analog resistive film type
Equipped with Windows 10 IoT Enterprise LTSC 2019.
It is equipped with Microsoft® Windows 10 IoT Enterprise LTSC 2019, which allows the use of Windows applications.
Product Specification
| Model | MTR-331 | |
|---|---|---|
| Computer | Supported OS | Microsoft® Windows 10 IoT Enterprise LTSC 2019 |
| CPU | Intel Atom x5-Z8350(1.44GHz) | |
| Memory | 4GB | |
| Built-in storage | Built-in 32GB (Approximately 16GB used by system) | |
| Display | Type | TFT active matrix |
| Size/Resolution | 7 inch/1280×800 dots | |
| Maximum display color | 262,144 colors | |
| Touch panel | Detection method | Analog resistive type |
| External interfaces | USB | USB Type-A 1.1/2.0 ×2 (Type A) |
| Serial | RS-232C×1 port (D-Sub 9 pin) | |
| LAN | 1000 Base-TX×1 (RJ45) | |
| Wireless LAN | IEEE 802.11n 2.4GHz | |
| DIO | Specifications | Photocoupler insulation input x3 (Input resistance: 2.2 kΩ, ON voltage: DC 10.8 to 28V, OFF voltage: DC 0 to 0.8V) Photocoupler insulation output x3 (Maximum rating DC 30V, 50mA) |
| Audio | Monaural built-in speaker x2 | |
| Others | Main body dimensions | Main body only: W192 × D47 × H134(mm) (excluding protrusions) |
| With NFC option attached: W256 × D47 × H134(mm) (excluding protrusions) | ||
| Weight | Main body only: Approx. 730g | |
| With NFC option attached: Approx. 730g + 100g | ||
| With stand option attached: Approx. 730g + 450g (Main body and stand option only) | ||
| Power supply | 100V 50/60Hz AC adapter (12V) φ5.5×2.1 | |
| Power consumption | 20W or less (when using the included AC adapter) | |
| Non-contact IC card reader/writer (with NFC option attached) | MIFARE Classic(1K,4k)、MIFARE Ultralight、FeliCa、FeliCa lite、ISO/IEC14443 TypeB、 | |
| ISO/IEC15693(ICODE SLI ,etc ) | ||
| 環境仕様 | 使用環境温度 | 動作時：0～40℃ 保管時：-10～60℃ |
| 使用環境湿度 | 動作時：20～85％RH 保管時：20～85％RH 結露なきこと | |
| 耐振動 | 10～55Hz 振幅1.5mm(全幅) X,Y,Z各方向 1時間(試験値であり、保証値ではありません) | |
| 環境対策 | RoHS指令対応 | |
| 使用条件 | 室内に限る ※但し粉塵の多い工場などの場所でのご使用には適していません。 | |
