Intelligent RFID Reader/Writer MTR-115

Features/Functions

Two operating modes can be selected to suit the application

Two modes can be selected: stand-alone mode, which operates autonomously according to pre-defined settings, and command response mode, which operates according to commands from the host.

In stand-alone mode, the device operates as an IC card reader and various settings can be easily made via a browser.
The user simply sets the target IC card to be read, the data to be sent, the LEDs and sounds, etc., without having to write any code.
If more complex operations are required, the on-board software can be customised.

Ethernet standard (PoE compatible)

HTTP communication is possible, allowing it to be used in system design in conjunction with web applications.

PoE is also included as standard, so there is no need for a power supply and it can be operated using just a LAN cable.

NFC IP-2（ISO/IEC 21481）対応

幅広いシチュエーションに活用いただけます。
Mifare ISO/IEC 14443 Type A
FeliCa （暗号化非対応）
ISO/IEC 14443 Type B
ISO/IEC 15693

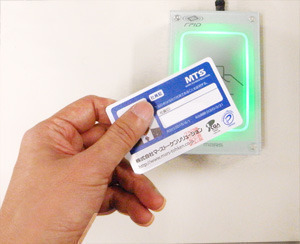

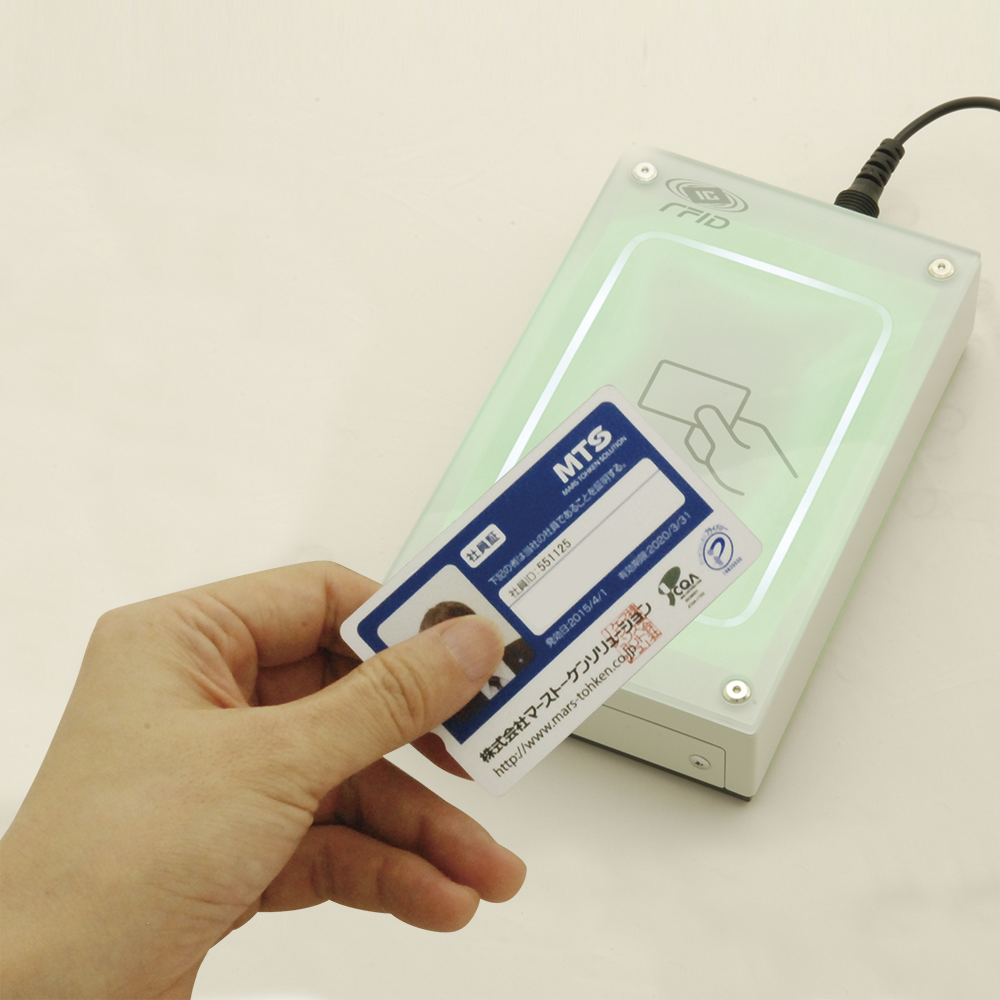

High-intensity LEDs with tri-colour illumination, fitted with speakers

The user interface design features tricolour LEDs around the reading area, making it very easy to see when an IC card has been read and to confirm when an error has occurred.
Sound and music can also be played through the built-in speaker.

Two interfaces can be selected depending on the application.

RS-232C and LAN are available; for LAN connections, the user can choose between HTTP and Socket communication.
また、セキュリティの観点からPCでUSBを使用できない環境でも使用することができます。

Introduction video

Product Specification

model		MTR-115
Display part	LED	LED:RGB ×6 灯
sound		Speaker output 0.5W (max 1W)
External interface	Cable LAN	10Base-T/100Base-TX x 1 port
	RS-232C	TXD, RXD, RTS, CTS × 1 Port
Power source	Rated voltage	DC12V±10% or IEEE802.3af compliant POE hub/POE injector
	Maximum power consumption	6W
environmental condition	Operating Temperature and Humidity	0 to +40°C / 20 to 80% RF  *No condensation.
	Storage temperature and humidity	-10 to +60°C/10 to 90%RF  *No condensation.
Outer dimensions		88(W)×34(H)×138(D)mm  *excluding rubber feet and protruding parts
Dust and spill resistant		IP3X
weight		Approx. 450g
RFID reader/writer	Communication frequency	13.56MHz
	Target IC tag	NFC-IP2 (Mifare classic (1k,4k), Mifare Ultralight, FeliCa (non-cryptographic))
		FeliCa lite ISO/IEC14443 TypeB、ISO/IEC15693(I-CODE SLI ,etc )
