Features/Functions

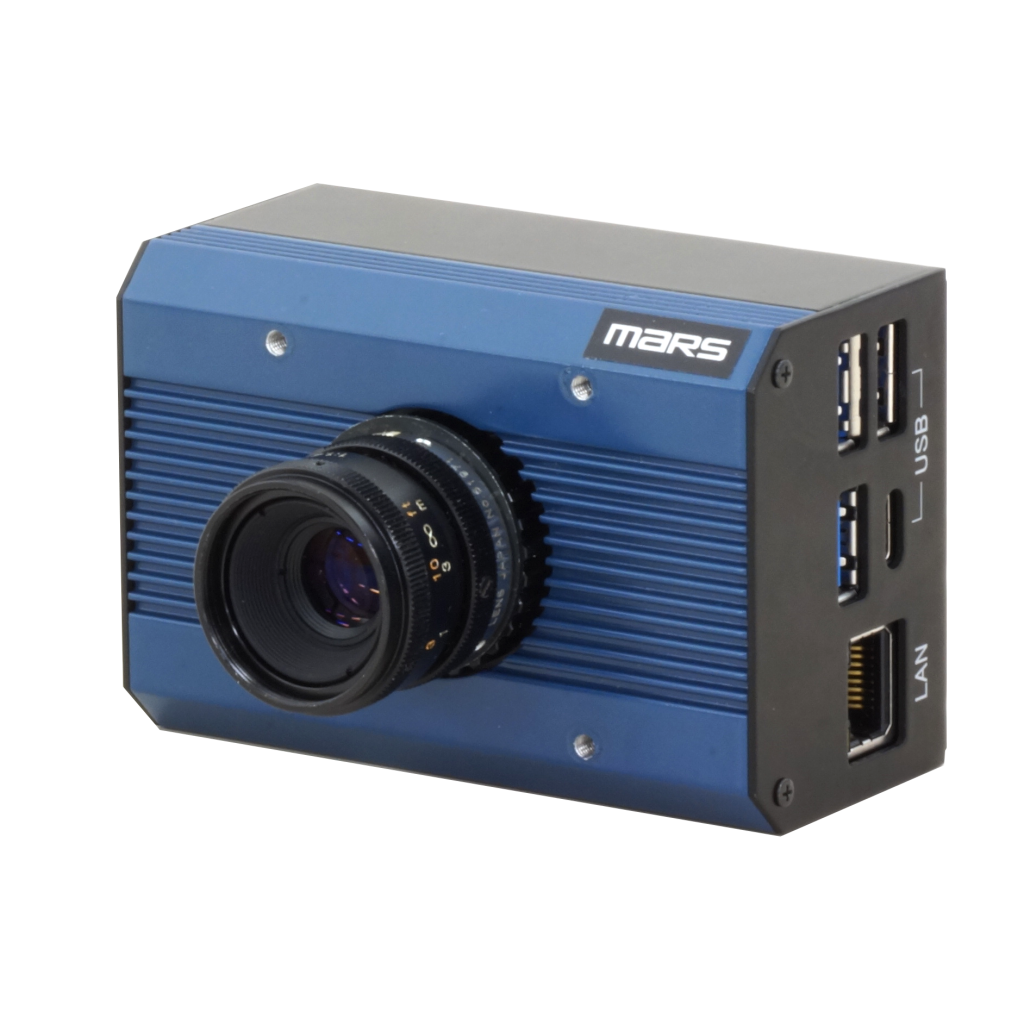

Industrial class gateway kit for Tinker Board

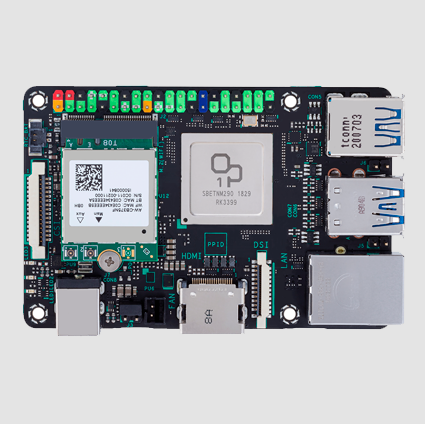

Tinker Board 2S powered by Asus IoT(not included in MCV-100TB)
MIPI camera support
1．Real time image processing
Faster than USB3.0, MIPI CSI-2 interface brings the high reliability image processing.
- Affordable camera solution
A lot less expnsive than using industrial USB or GigE camera.
For rapid prototyping and implementation to production line
Protect Tinker Board from noise, unstable power, dust and temp.
Industrial
grade
housing
I/O for real
time process
Camera board
with 12M pix
sensor+C mount
Heatsink
Specification
| Model Number | MCV-100TB |
|---|---|
| Mechanical | |
| Dimensions | 90*60*45 mm |
| Housing | Aluminum dicast |
| Weight | 0.4kg |
| Mount | Stand, Wall mount, DIN rail (optional) |
| Communication | |
| DIO | Digtal input (Photocoupler insulation) x 2 |
| Digtal output (Photocoupler insulation) x 4 | |
| Hardware | |
| Camera | 12Mpix |
| Power consumption | 48W @ 24VDC |
| (Including external lighting 24W@ 24VDC ) | |
| Certification | CE , FCC |
| Camera Interface | MIPI |
| Ingress Protection | IP40 |
| Operating Temperature | 0 to 50℃ |
| Relative Humidity | 10 to 95%RH (non-condensing) |
| Tinker Board 2S | |
| Interface | Ethernet x 1, USB Type-A x 3, USB Tpye-C OTG x 1, |
| Wireless LAN,HDMI (comply with Tinker Board 2S spec) | |
| OS | Android |
| Storage | 1 x 16GB Micro SD card |
