Features/Functions

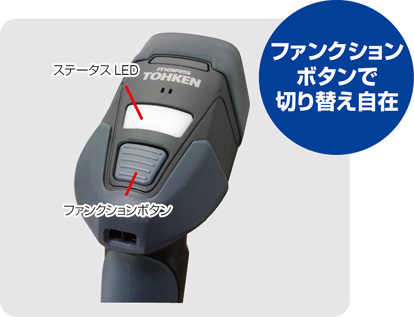

Easy and convenient function keys
The scanner alone can be switched to different operational applications!
- Switching between spot/oblique lighting
- Switch between normal/continuous/paper recognition reading modes.
- Transmission at any time of the Enter key.
- Transfer of readout images

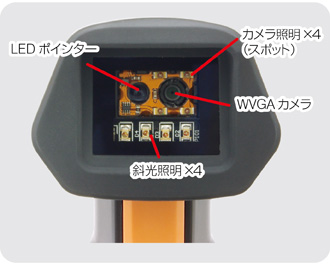

320,000-pixel WVGA monochrome camera
- Two types of lighting (camera lighting, oblique lighting)
- IP64, 2m drop resistance
- Answerback (with vibrator and LED)

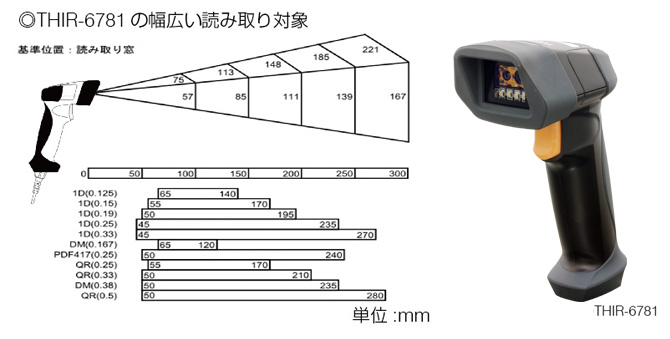

Wide range of readable objects
Product Specification
| model | THIR-6781R |
|---|---|
| Interface | RS-232C |
| Resolution | 0.125mm/1D、0.167mm/2D |
| Corresponding code | |
| 2D Code | DataMatrix(ECC200), QRCode, MicroQR, PDF417, MicroPDF417,AztecCode, MaxiCode,GS1-Databar |
| 1D Code | JAN/EAN/UPC, ITF, Codabar, Code39, Code128, GS1-128,GS1-Databar(RSS), Code93 |
| Power source | |
| Rated voltage | 5.0V±5% |
| electricity consumption | 約400mA@5.0V |
| Usage environment | |
| Operating Temperature / Humidity | 0-40°C / 35-85%RH (non-condensing) |
| Storage temperature/humidity | -20 to 65°C / 35 to 85%RH (non-condensing) |
| environmental friendliness | IP64 |
| protective structure | Normal operation after a 2m drop to concrete. |
| Outer dimensions | 60(W) x 164(H) x 126(D)mm |
| weight | Less than 175 g (not including cable) |
| Option. | Desktop/wall stand ST-6710PA/PA-B | Autoscan stand ST-6001 |
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
