Features/Functions.
An industry first! Wireless charging system adopted!

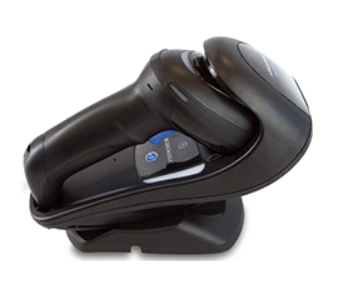

Contactless (wireless) charging system.
There is no charging terminal, which can also be a cause of failure.
Automatic reading

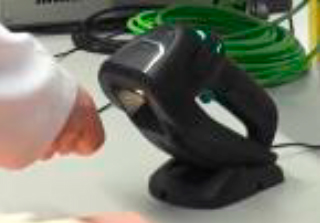

Barcodes can be scanned while mounted in the charger and communication cradle. The cradle is also tiltable.
Product Specification
| model | MCR-H280B |
|---|---|
| Interface | Bluetooh®4.0 4.0 with BLE Certified Class 1（100 m line-of-sight communication is possible.） 7 units can be connected to each base station. Communication between the base station and host is via USB (standard) or RS-232C (cable sold separately). |
| 2D Code | QR Code, Micro QR Code, DataMatrix, PDF417, Micro PDF417 |
| 1D Code | JAN/EAN/UPC (including additional codes), ITF, CODE39, CODE93, CODE128/GS1-128, CODABAR(NW7), GS1 DataBar family |
| Power source | Lithium-ion battery – 3,250mAh |
| Charging time | 3 hours (external power), 11 hours (USB only) |
| Average power consumption | Rated 300mA (DC5V), standby 90mA (DC5V) |
| Operating temperature/humidity | 0-50°C/0-95% (without condensation) |
| Environmental resistance | IP52 |
| protective structure | 1.8 m (scanner body dropped repeatedly onto concrete surface) |
| Outer dimensions | 68(W)x166(H)x109(D)mm |
| weight | Main unit 235g (including battery) |

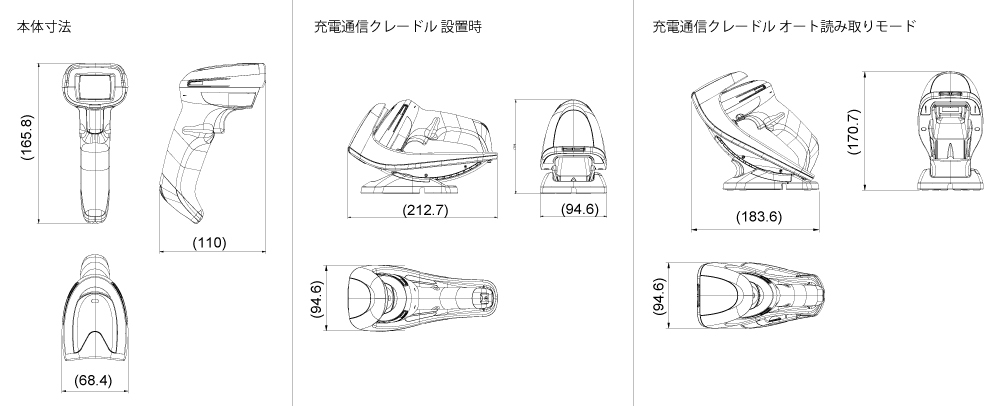

External dimensions
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
