Features/Functions
Compatible with all codes, including S1 and ISO/IEC standards. Anyone can easily perform verification operations.

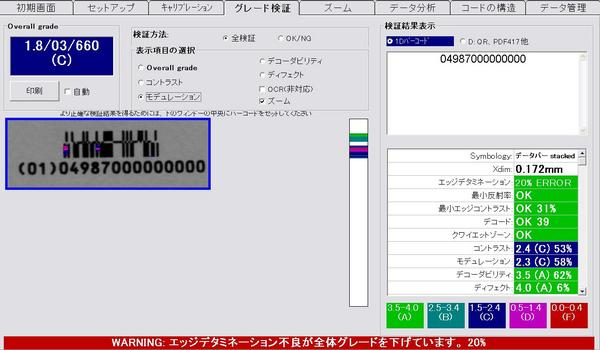

To verify, simply select the barcode with the mouse while viewing the image and the verification results are displayed.
Not only validation, but even tips on how to improve print quality in the case of low grades.

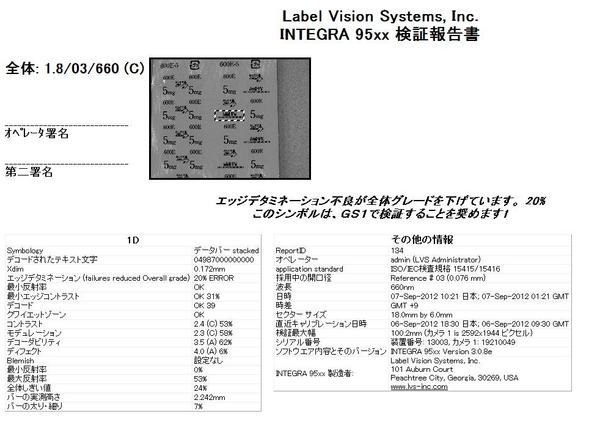

The Validator does not just display the validation results. Selecting a low-grade inspection item will display a description of the item and a colour display of which parts of the inspection image are bad. Contrast can also be displayed graphically and even provides points for improvement in relation to the validation results, such as print shading and blurred edges. The results can also be output to a printer or PDF.
Verification with the same cameras as in the market.
Camera-type barcode readers are becoming increasingly popular on the market. Unlike the laser type, which verifies with around ten scan lines, the camera type verifies the entire image with unparalleled accuracy with several hundred scan lines.
Installation and after-sales support unique to MTS
MTS offers a comprehensive service, including information on industry trends and guidelines, IQ/OQ (PQ) support at the time of implementation, and proactive support for print claims from medical institutions and other parties after implementation.
Introduction video
Product Specification
| Camera unit dimensions | |
|---|---|
| depth | 9.062inches(230mm) |
| width | 11.125inches(282mm) |
| height | 10.25inches(260mm) |
| weight | 11pounds(5kg) |
| CCD cameras (2 models) | Monochrome 5 megapixels |
| Recommended environment (PC with the following specifications) | |
| OS | Windows 10 |
| CPU | Intel Celeron2.4Ghz以上 |
| Memory | 1GB RAM |
| Hard Drive | 40GB |
| Displays | 800×600以上 |
| USB 2.0 port | 1 port or more |
| Light source | |
| red | 660nm |
| 12vdc | 1.6amps |
| input-output | |
| USB | USB2.0port |
| 12vdc | 1.10amps |
| working environment temperature | 10℃～30℃ |
| Storage location temperature | 0℃～40℃ |
| Environmental humidity | 20%～70% |
| Calibration Card | Use of GS1-issued conformance cards. |
Reading Distance
| form | cell size | near | far |
|---|---|---|---|
| 1D Code | 0.15 | 75 | 110 |
| 0.19 | 65 | 145 | |
| 0.25 | 55 | 180 | |
| 0.33 | 40 | 195 | |
| 2D Code | 0.25 | 65 | 90 |
| 0.33 | 50 | 125 | |
| 0.38 | 40 | 145 |
