Lithium-ion batteries, aluminium electrolytic capacitors, IC packages, substrates, wafers, temperature sensors, etc. Automatic X-ray inspection system

X-ray inspection automation with extensive experience and a proven track record.
We offer customised solutions to meet your needs.

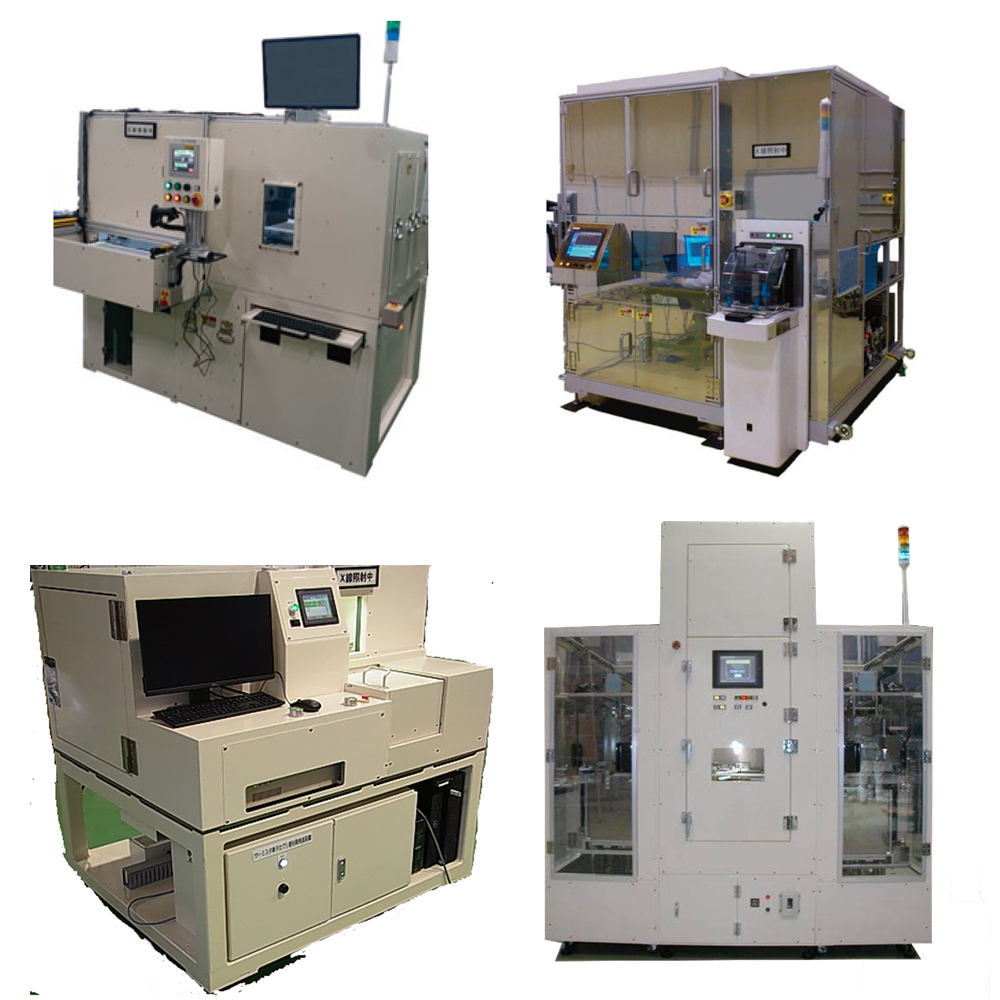

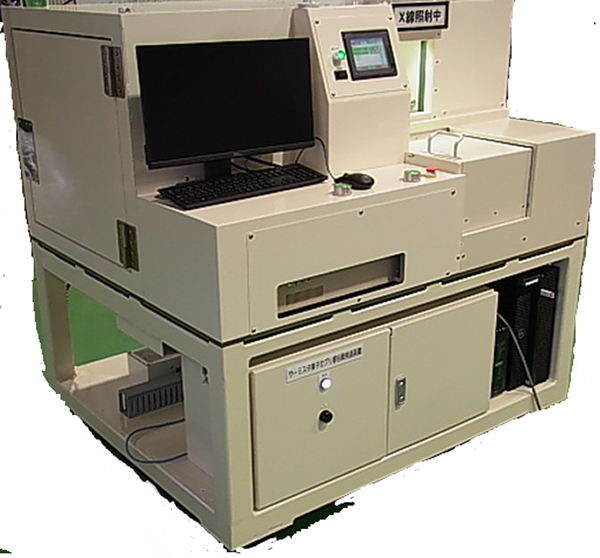

Marstoken Solutions Ltd. offers a variety of automated X-ray inspection systems, such as automated inspection of lithium-ion batteries and semiconductors, to meet customer needs.
With a wealth of experience in the selection of X-ray generators and detectors, image processing systems, X-ray shielding mechanisms and workpiece transfer mechanisms, we can meet all requirements from in-line to off-line inspection.

Enquiry form

Download catalogue

Features and examples

Tailored to your needs

We can customise your inspection capabilities with the best combination of X-ray source and detector, including image processing.

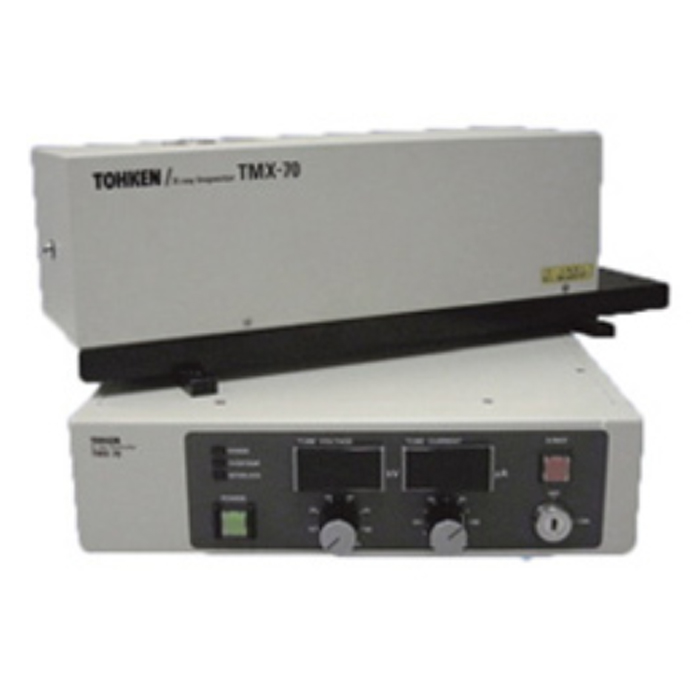

X-ray source

Detector

Image processing

equipment

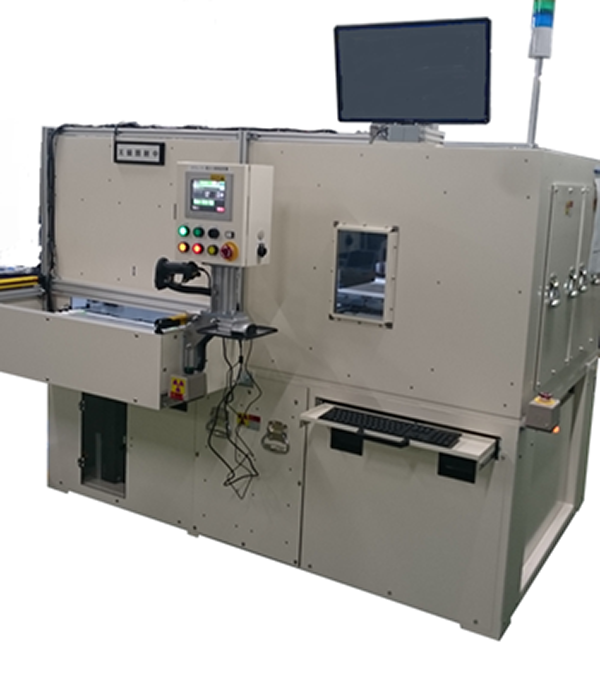

リチウムイオン電池検査 — Lithium-ion battery inspection

Inspected objects and items

Object to be inspection	checklist

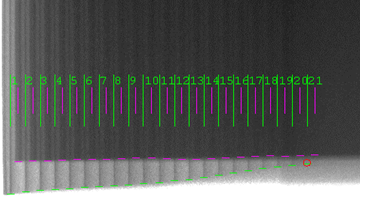

Cylindrical battery	Miswinding, tab bending and position

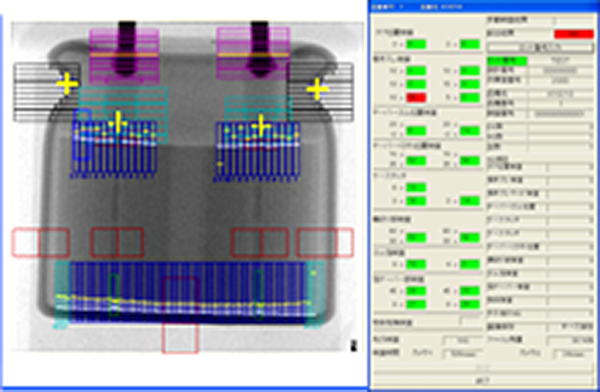

Laminated (polymer) batteries	Laminar Misalignment/Foreign Objects
Aluminium Electrolytic Capacitors	Incorrect winding, electrode deflection/tilt, tab insertion
IC Package	Au/Cu wire proximity
Substrate	Component misalignment and solder voids

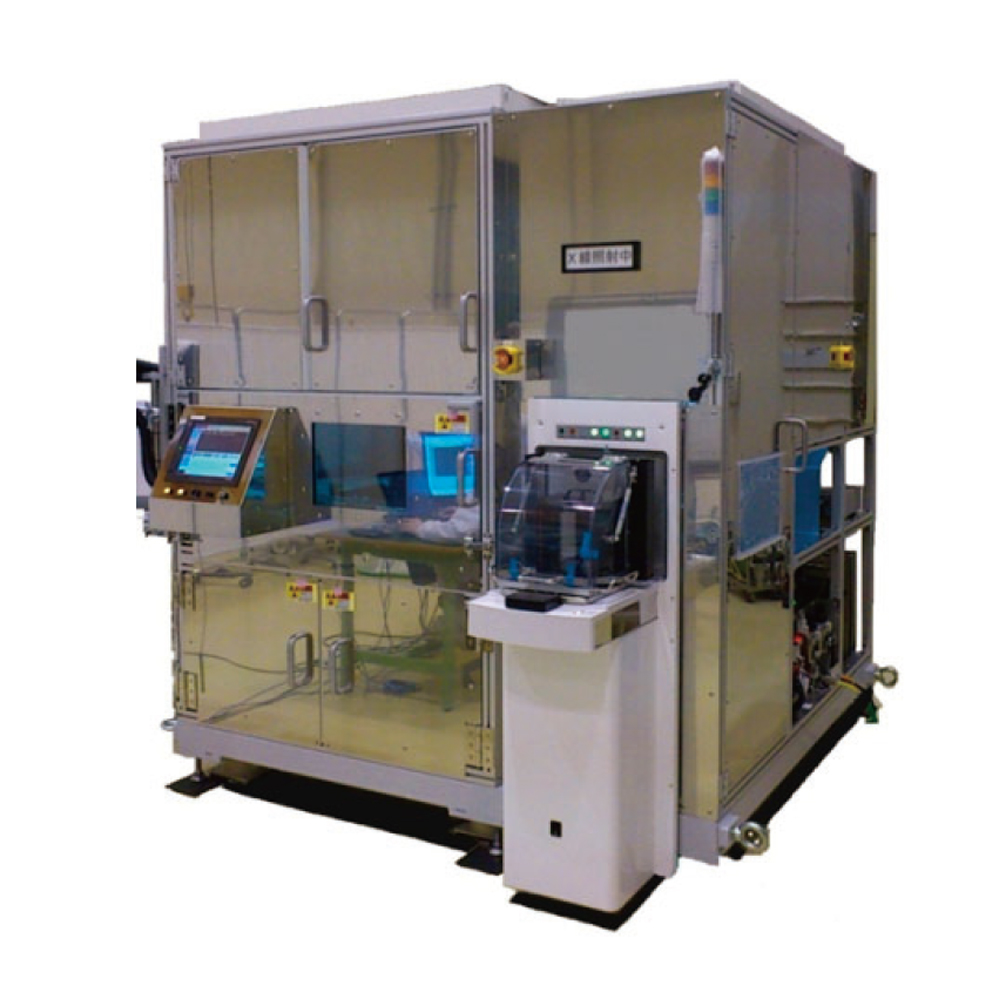

Wafer	Void in bump
Temperature sensor	Protective tube to element spacing inspection.
