UHF band RFID Reader/Writer

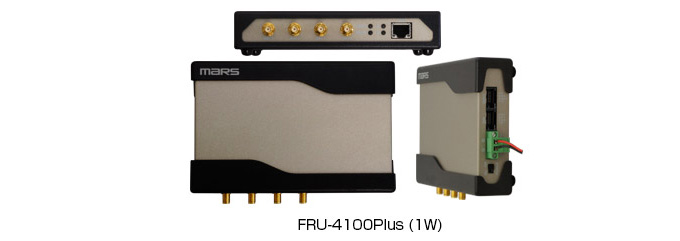

Intelligent fixed Mount UHF band RFID Reader/Writer FRU-4100Plus
FRU-4100Plus is Easy setting Intelligent fixed Mount UHF band RFID Reader Writer.
Reduce development cost for upper layer computer system!
・Manual mode and three auto modes installed.
・The upper layer computer system does not have to care
about the complicated settings of the reader/writer.
・connects with PC and we can configure it through web browser.
●External interface(LAN/DIO)
●Power DC12 to 24V
●Compact size,space-saving
Functions and features introduction

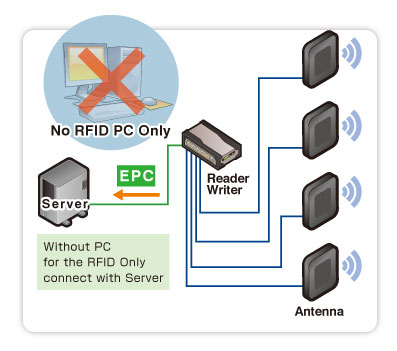

Self-discipline action will reduce development cost for upper layer （Auto mode）
It automatically reads when power is turned on and transmits data.
It's available which can be configured through browser
The upper layer computer system does not have to care
about the complicated settings of the reader/writer.
It is possible to send data not only to servers in the LAN but also to cloud servers on the Internet via routers.
Server side can receive data with WEB server etc.Secure communication with HTTPS is possible.System developers can easily start a system using RFID reader / writer.
Supports various communication methods
In addition to LAN, serial interface, DIO is also installed.It can accept digital input from sensor and digital output to peripheral equipment.
Number of antenna ports：4 pieces
Supports LAN connection （Socket communication、HTTP/HTTPS communication).
In HTTP / HTTPS communication support for GET, POST query method and JSON method.
Compact size, space-saving.
Compact size can also connect with LAN、Reader and antenna are separated so Increased freedom of installation position.A variety of connection configurations can be chosen according to operation.
download
-
configration tool/sample soft/manual（japanese edition)
Specification
| Model Name | FRU-4100Plus | |
|---|---|---|
| Modes | [Manual mode] Operates with commands | |
| [Auto mode] Intelligent function capable of autonomous operation | ||
| RFID | Frequency | 916.8 to 920.4MHz |
| License | ISO/IEC 1800-63(6C)（EPC Global C1 G2） | |
| Max Output | 1W(30dBm) | |
| Output adjustment | 5 to 30dBm、0.1dBm Variable in step | |
| License for radio station | Need （Campus radio station license stations） | |
| Number of antenna connections / connector | 4・SMA-J | |
| Interface | LAN port : 10Base-T / 100Base-TX（Full duplex） | |
| Debugポート : RS-232C | ||
| I/O | DIO Input&Output×2 | |
| Power | Input power | DC12～24V（AC 100VA AC Adapter can be used） |
| Power consumption | 10W | |
| Waterproof & Dustproof | IP30 | |
| Enviromental tolerance | Operation tem/humidity | 0 to 40 degrees（Non-condensing） / 20 to 85%RF（Non-condensing） |
| Operating Humid | -20 to 60 degrees（Non-condensing） / 10 to 90%RF（Non-condensing） | |
| Dimension（※Protruding part not including） | 158（W）×102（D）×29（H）ｍｍ | |
| Weight | 355g | |
| Oder | With initialization button | |
