2D Code reader handy terminal
2D Code scanner Intelligent Data Collector MID-100
2D Code Scanner,Palm-Sized Mobile Handy Terminal
Compact body and highest level of processing capacity in the same class（CPU:1GHz、Memory：2GB）and State-of-the-art bar code reading algorithm.
Thanks to android Linux OS,It can be adapted to a wide range of business applications.The design pursuing operation stress reduction
, Making it possible to operate for a long time with a minimum burden.
● Specs beyond the handy terminal CPU：1GHz / Memory：2GB
● Connect various terminalswith Bluetooth Working with iphone&Tablet
● 7 units can connect to 1 host device. Reduce the cost of application development.
● LinuxOS ease the Application development
● Convenient bundled applications (barcode collation / achievement collection) that can be used for business immediately after purchasing.
Functions and features introduction
2D Code Scanner,Palm-Sized Mobile Handy Terminal
High spec Handy Terminal
①Wide opportunity of use Powerful CPU「1GHz」 (ARM Cortex-A9, 1GHz）
②Large memory space for application「1.8GB」No matter how large master data, no matter how much actual data is accumulated, it is a memory capacity that you can afford.
Easy to add user application
Development environment
■OS：Ubuntu 14.04 LTS English Ver./Japanese Ver./
■App Language：Qt 5.5（C++）
■Support envionment：Qt Creator 3.4.2
①Development environment will be provided free of charge.
②Sample programs will also be provided free of charge.
③Since the development environment is provided as a disk image, it is unnecessary to download from each site, installation work, and various setting tasks.

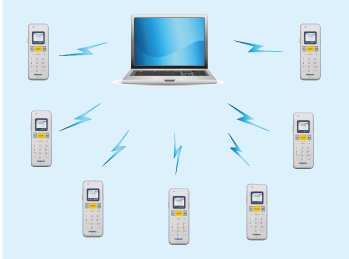

Multiple device connection to a host
・Automatically search MID-100 in the neighborhood and Connect・Up to 7 units connected. can be received 7 units simultaneously.Applications：Production line／Logistics.Large monitor／Volume display／Budget record display／Work content display
As a bar code reader maker, we gathered technologies accumulated over many years and achieved the best performance.
Commitment to reading performance
①With the newly developed scanner unit and the latest reading module, it achieved the top notch reading performance.

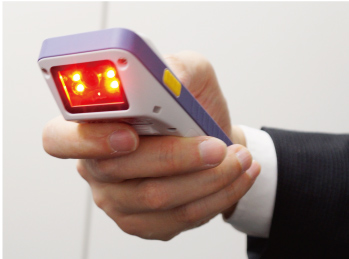

②Employed the best scanner angle to ease the reading operations at desks, shelves, luggage, for any position.

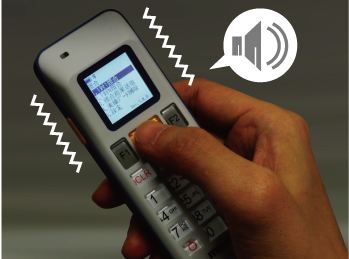

Buzzer,LED and vibrator for indicator
Provides high visibility even in dark places with backlit LCD.
With the sound and vibration function, you will surely notify the user of the reading result.

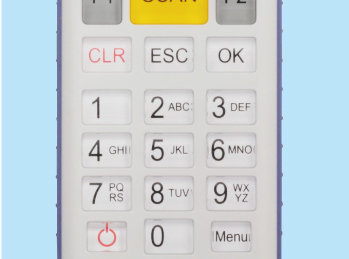

Larger key design
①User oriented key layout and pich ②With easy-to-press button design, you can improve work efficiency even in a hurried work site.③Key pitches that can alleviate operation mistakes even with gloves wearing!

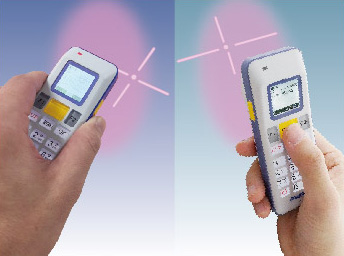

Ergonomic angle for comfortable barcode reading.
3Triggers for both hands.
Heavy Duty

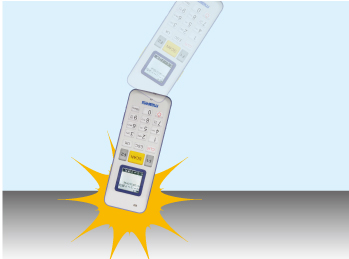

①Drop proof to concrete from 1.5m ②Waterproof&Dustproof「IP54」
③Double action opening and closing method to prevent battery jump.
Long time battery powered
It is equipped with a lithium-ion battery and operates for 16 hours with 4 hours of charging. All day business use available. In addition, we have a replacement battery, which can be easily replaced by the customer.
Useful bundled applications
Thanks to Android Linux OS, developers can also handle the Application development.. Both the user and developer can reduce the cost of application development.
SDK: Qt Creator 3.4.2
Programming language: Qt5.5 (C++)
Newly released application which works with the customer's master data source
With bundled application, the users can do matching operation by reading master barcode and barcode for comparison. However, they can not load the master data as the source of comparison. Now we released an applicaiton which can load the master file and use it in the compair operation.
ManualSpecification
| Product name | MID-100 |
|---|---|
| OS | Linux OS(3.10.53) |
| CPU | ARM Cortex-A9 , 1GHz |
| Memory/ROM | 4GB FlashROM(User area:1.8GB) |
| Ineterface | |
| Bluetooth | Bluetooth V2.1＋EDR(Class2) |
| Pairing Method | NFC+QR code Pairing |
| Communication Mode | HID、SPP |
| Display | |
| Display | Monochrome LCD Baklirht Included(English/Japanese Display Supported) |
| Resolution | 128×128 dot TrueType Font Supported,Font size can be changed |
| Display | 1.26Inch(About 22.6×22.6mm) |
| LED Indication | Tow-Color LED、Charge/Read Indication |
| Physical key | Numeric Keypad、Function Key(F1/F2)／CLR/ESC/OK/Power supply /Setting/center Part、Side Part（3Scan Key） With Key Backlight |
| Scanner | |
| 1D Barcode | Codabar(NW-7)、ITF、code39、code128、JAN／EAN／UPC Code93、GS1 DataBar |
| 2D Barcode | QR code(Model2)、PDF417、DataMatrix(ECC200) |
| Scan Engine | CMOS Sensor、360,000 Pixels |
| Scan Resolution | 1D:0.167mm or more / 2D:0.25mm or more |
| Read range | 1D:40mm～270mm / 2D:80mm～255mm(0.33mm時) |
| Aiming | Cross shaped Laser Pointer |
| Scanner Direction | About 60 Degrees |
| Vibration | With Vibration Function |
| Soun Buzzer | Volume 4 level:Off/LOW/Medium/High |
| Strap hole | 4 places |
| Size | |
| Deimension | 130 x 47 x 33(21)mm ※()is the grip part |
| Weight | Approx.130g (Including battery pack） |
| Battery | |
| Type | Li-lon 1,150mAh |
| Charging Time | About 4 hours |
| Operation Time | About 16 hours |
| Environment | |
| Operating Temperature ／ Operating Humidity | 0～50℃ ／ 20～85％RH |
| Drop Specification | 1.5m on the concrete floor |
| Waterproof & Dustproof | IP54 |
