2D Code reader handy type

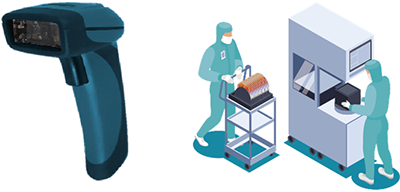

1D & 2D General purpose Handheld Barcode Scanner MCR-H200
●High quality CMOS
●1.2M pix (1280x960)
●IP54
●High speed processing
●LED & Vibration indicator
●Omni-directional reading
●Paper, label and DPM
Functions and features introduction
MCR-H200-W
PVC-Free CodeShield® plastics stand up to more disinfectants in hospitals and medical offices.
MCR-H200-ESD
Special coating technique to the housing, our ESD model offers “No carbon contamination” and “High uniformity of surface resistance”.

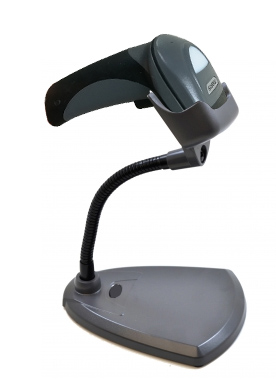

Optional Stand
Specification
| Model | MCR-H200 |
|---|---|
| Interface | USB, RS-232C |
| Minimum resolution | 0.04mm (1.6mil) |
| Supported Barcodes | |
| Stacked & 2D Codes | DataMatrix(ECC200), PDF417, MaxiCode, QR Code, MicroQR, MicroPDF, GS1 Data Bar Composite, |
| Linear 1D Codes | JAN/EAN/UPC, ITF, Codabar, Code11, Code39, Code93, Code128, EAN128, GS1 Data Bar, Pharmacode |
| Power supply | |
| Power | DC5.0V+/-5% |
|
Power consumption (in reading operation) |
350mA @ 5.0V |
| Environment | |
| Operating temp./humidity | -20 to 55C / 5 to 85%RH (non-condensing) |
| Storage temp. /humidity | -30 to 65 C / 5 to 85%RH (non-condensing) |
| Drop specification | Multiple drops from 2m to concrete (no reduction in reading performance) |
| Dimensions | 52(W) x 132(H) x 77(D)mm |
| Weight | 116g |
Manual / Configuration Code Menu
