2D Code reader stationary type

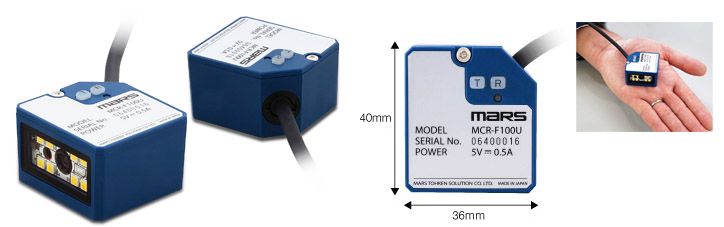

Compact 1D & 2D Fixed Mount Barcode Scanner MCR-F100
Compact 1D & 2D Fixed Mount Barcode Scanner
●Extremely Small Size
●CMOS camera(752x480)
●Integrated illumination
●Auto Tuning
●IP65
●All-in-one design
Functions and features introduction
Auto Tuning function
Click T button, Tuning to read Barcode without PC.

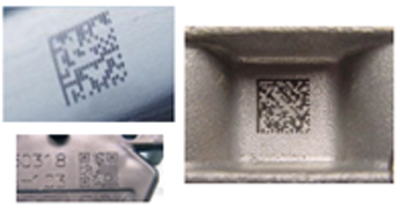

DPM Option Mode
Powerful Decoding software to read Paper, Label, and Laser & Dot Pin Marking
Intelligent Table Mode
Register 16 settings and it enables configuration free operation for multiple objects to read.
Specification
| Product name | MCR-F100R / MCR-F100U |
|---|---|
| Supported Barcodes | |
| 2D | DataMatrix(ECC200), QR Code, MicroQR, PDF417, Aztec Code, Composite Code |
| 1D | JAN/EAN/UPC, ITF, Codabar, Code39, Code93, Code128, EAN128, GS1 Data Bar |
| Interface | RS-232C (MCR-F100R) / USB2.0 (MCR-F100U) |
| Minimum resolution | 1D: 0.19mm(7.48mil), 2D : 0.25mm(9.84mil) |
| Power | DC24.0V+/-10%, DC5.0V+/-10% (MCR-F100r) / DC5.0V+/-10% (MCR-F100U) |
| Power consumption | 80mA (MCR-F100r) / 300mA (MCR-F100U) |
| Operating temparature/Humid | 0 to 40 C / 35 to 85%RH (no condence) |
| Storage temparature/Humid | -20 to 60 C / 35 to 85%RH (no condence) |
| Digital input | Photocoupler isolation x 1, Resistance: 1kΩ, OFF voltage: 0 to 0.8V, ON voltage: 6 to 28V |
| Digital output | Photocoupler isolation x 3, Rated value DC30V 50mA |
| Dimensions | 40(W) x 24(H) x 36(D)mm |
| Weight | 30g |
Download
Customers after purchase
-
Manual / Driver / Configuration Code Menu / Software for Configuration

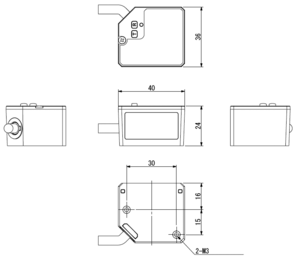

Dimensions
