X-ray inspection system
Optional equipments for Nanoscale X-ray Inspection Systems Heating equipment
Compatible models：TUX-3000W・TUX-3200・TUX-3210Optional equipments for Nanoscale X-ray Inspection Systems
Features
●Heats up to 400° C at a heating gradient of 5° C/second.
●Features excellent temperature profile compliance, allowing you to set up to 99 points in a single profile.
●Includes an external camera that records surface observation in addition to X-ray fluoroscopic observation.
●Eliminates the surface/reverse side temperature difference during heating, creating reflow-like conditions(N2 gas may also be used).
Provide space for 2 extra temperature measurement thermocouples in addition to the 2 thermocouples used for temprature control.
●Includes dedicated software that lets you connect directly to a computer to save video and play surface and X-ray video simultaneously.
- Equalizes images to reduce noise and improve video quality.
- Displays temperature, time, and filming conditions during playback.
- Exports temperature measurement data in CSV format.
●Features standard post-heating cooling functions.
Functions and features introduction
Heats up to 400° C at a heating gradient of 5° C/second.

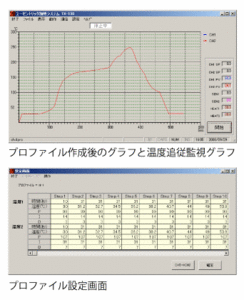

Features excellent temperature profile compliance, allowing you to set up to 99 points in a single profile.
Includes an external camera
Includes an external camera that records surface observation in addition to X-ray fluoroscopic observation.

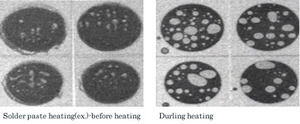

creating reflow-like conditions
Eliminates the surface/reverse side temperature difference during heating, creating reflow-like conditions(N2 gas may also be used).
2 thermocouples used for temprature control.
Provide space for 2 extra temperature measurement thermocouples in addition to the 2 thermocouples used for temprature control.
Includes dedicated software
Includes dedicated software that lets you connect directly to a computer to save video and play surface and X-ray video simultaneously.
- Equalizes images to reduce noise and improve video quality.
- Displays temperature, time, and filming conditions during playback.
- Exports temperature measurement data in CSV format.
Features standard post-heating cooling functions.
Specification
| Compatible models | TUX-3000W/TUX-3200/TUX-3210 |
|---|---|
| Dimensions | |
| Heating unit | 70(H) x 410(W) x 160(D);weight:2.8kgs |
| Thermoregulator | 258(H) x 580(W) x 230(D);wight:1.2kgs |
| Work Size | Up to 40(vert.) x 40(horiz.) x 6mm(depth) |
| Observation Range *1 (with a 30 mm x 30 mm holder) | |
| Detector tilt : 0° | 30 mm x 30 mm |
| Detector tilt:60° | 14 mm x 30 mm |
| Detector tilt mechanism *2 | Up to 60° (the TUX-3000W does not include a tilt mechanism) |
| Heating mechanism | |
| Maximum temperature | 300° C(up to 400° C is possible, but for a limited time) |
| Heating gradient | 0.1-5° C/second |
| Cooling mechanism | |
| Cooling method | Natural cooling, cold air cooling |
| Cooling gradient | Approx. 3° C or less (from 200° Cto 300° C) |
| Utilities |
Compressed air or N2 gas:0.5MPa Po wer supply:AC100V, 1.5kVA |
| *1:Sample holders come in two different observation range types(30×30mm and 15×15mm) |
