2D Code reader handy type
1D & 2D General purpose Handheld Barcode Scanner THIR-6780/THIR-6781
High quality CMOS camera / Combination of two types of illumination
IP64 rating(protection against dust and splashed water) +
High speed processing +
Light weight, tough body+
LED & Vibration indicator +
Omnidirectional reading +
Paper, label and DPM +
Functions and features introduction

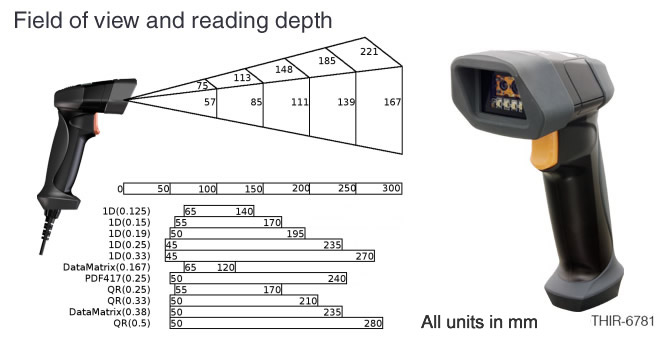

Wider reading range. Can be used for general purpose and also DPM application.
ESD model is also available.
Using a special coating technique to the housing, our ESD model offers “No carbon contamination” and “High uniformity of surface resistance”. It brings higher risk control of static discharge.
Specification
| Model | THIR-6780R / THIR-6780R-H / THIR-6780U / THIR-6780U-H / THIR-6781R / THIR-6781U |
|---|---|
| Interface |
RS-232C：THIR-6780R/R-H/THIR-6781-R USB&HID：THIR-6780U/U-H/THIR-6781U |
| Minimum resolution |
THIR-6780R/U：0.19mm/1D、0.25mm/2D THIR-6780R-H/U-H：0.125mm/1D） THIR-6781R/U：0.125mm/1D、0.167mm/2D |
| Supported Barcodes | |
| Stacked & 2D Codes | DataMatrix(ECC200), PDF417, MaxiCode, QR Code, MicroQR, MicroPDF417, AztecCode, GS1 Data Bar Composite, Customer barcode (optional) |
| Linear 1D Codes | JAN/EAN/UPC, ITF, Codabar, Code39, Code128, GS1-128,GS1-Databar(RSS), Code93 |
| Power supply | |
| Power | 5.0V±5% |
|
Power consumption (in reading operation) |
Around 400mA@5.0V |
| Environment | |
| Operating temp./humidity | 0 to 40C / 35 to 85%RH (non-condensing) |
| Storage temp. /humidity | -20 to 65 C / 35 to 85%RH (non-condensing) |
| Protection Rating | IP64 |
| Durability against drops | Multiple drops from 2m high to concrete and fully operate |
| Dimensions | 60(W) x 162(H) x 125(D)mm |
| Weight | 159g(without cable) |
