Features/Functions
Ideal for reading direct markings
Ideal for reading 2D symbols directly marked on printed circuit boards, plastic components, etc., this system brings together MTS’s unique cutting-edge expertise and enables the reading of direct markings that were previously considered difficult to read.
Easy reading setup at the touch of a button.
Easily adjust the optimum lighting settings to produce the best images for 2D symbol analysis.
Unique lighting functions allow free lighting settings for a wide range of workpieces, including substrates, metals and LCDs.
Easy set-up with intelligent auto-tuning function (*1) and simple set-up software. This frees you from the tedious tuning work associated with direct marking.
※1：The MCR-H700 selects the appropriate process from preset data. It meets the need for immediate use, with only button operation on the main unit.

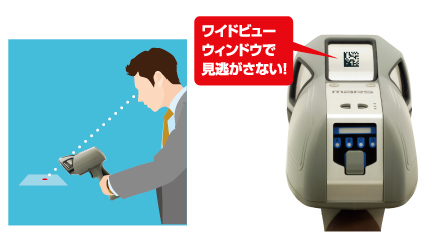

Easy reading with wide view window
Small 2D symbols that were difficult to see behind the reader are now easier to see and read thanks to the large reading window.

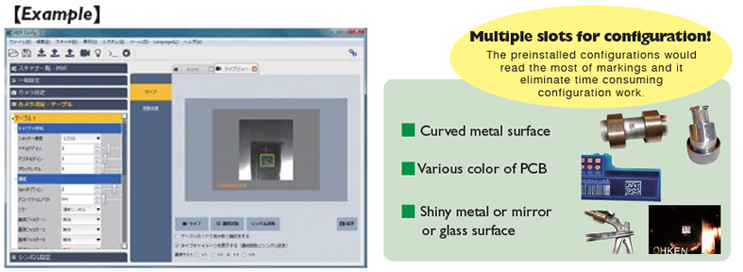

Easy to use configuration tool allows anyone to make the optimum settings.
You can easily find the optimum settings by selecting the illumination and image processing while viewing the read image in real time.
The Table Mode function allows you to set up reading settings for a wide range of materials, so that in most cases you can read without having to make any settings.
Equipped with PLC link function (RS-232C model)
If the barcode data write memory address in the PLC is set in the scanner, the read barcode data is automatically written to the designated memory The programming of the PLC is only the memory monitoring logic, which is usually familiar to the designer. Of course, the read/write data is also handshaked using the PLC memory.
Wireless (Bluetooth) models also available.
MCR-H711B (Enable reading compatible)
Reading results can be transmitted wirelessly (via Bluetooth communication) to the host PC, reducing reading range limitations and improving operability.
The MBA-300 dedicated Bluetooth receiver is available in USB, RS-232C and Ethernet models.
Maximum Bluetooth range (approx.): Approx. 10m in line of sight.
※Varies depending on obstacles (e.g. human bodies, metal walls, etc.) and radio wave conditions.
※Battery charger (MBC-700) and AC adapter sold separately.
※Bluetooth receiver (MBA-300) available separately.
※The MCR-H700B/H710B and TMA-6000/U will be discontinued.
The MCR-H710 model is now available to handle ‘detached reading’ and ‘wide barcodes’ in a single unit.
The DPM (Direct Part Marking) readers had to be read close to the workpiece, as they are equipped with special lighting to enable reading of markings with poor print quality.
The reading range was also limited due to the close reading distance to the part.
◎ I can’t get the scanner to read the part close to the DPM, e.g. uneven castings!
◎ I want my DPM scanner to read wide slip barcodes!
The MCR-H710 is a DPM scanner, but it can also handle ‘detached reading’ and ‘wide barcodes’ in a single unit.
※Depending on the minimum resolution and reading difficulty, only the MCR-H700 may be able to cope.
Electrical (ESD) countermeasure models available.
We are one of the few manufacturers who have been involved in the research and development of Anti-Electrostatic Discharge models for many years.
Countermeasures against the destruction and degradation of microcontrollers due to ESD have become an essential item in the manufacturing of electronic components, including liquid crystal devices, and are attracting the attention of finished product manufacturers as an important item for reliability assessment.
Our anti-ESD scanners use materials that are carbon-free, have low ionic contamination and low outgassing, and incorporate new technologies.

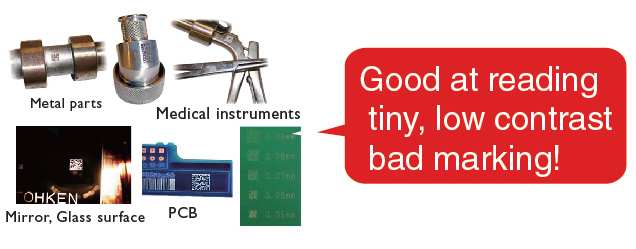

Ideal for reading 2D symbols marked directly on printed circuit boards and glass surfaces. It can handle even smaller marks than conventional machines.
Lowest resolution 40 µm (0.04 mm)
*Up to 25 µm is possible with the use of attachments (sold separately).
Introduction video
Product Specifications
| 型式 | MCR-H700R /MCR-H710R |
MCR-H700U /MCR-H710U |
MCR-H701B /MCR-H711B |
|
|---|---|---|---|---|
| インタフェース | RS-232C | USB&HID | USB&Bluetooth5.0(Bluetooth Low Energy) | |
| イメージセンサ | 1/3インチ CMOS 白黒 1280(X)×960(Y) （約120万画素） | |||
| 対応コード | バーコード | Code39、Code128/GS1-128 (EAN128)、Codabar(NW7)、ITF（インターリーブド 2of5）、JAN/EAN/UPC、GS1 DataBar(RSS）、Code93 | ||
| 2D | Data Matrix(ECC200)、QR Code、Micro QR Code | |||
| 読取角度 | ワークと読み取り窓の面は並行 ・チルト回転方向はフリー | |||
| 照明 | 白色LED・赤色LED、ピーク波長 632nm | |||
| 最小セルサイズ | 【MCR-H700R/MCR-H700U/MCR-H701B】0.1mm | |||
| 【MCR-H710R/MCR-H710U/MCR-H711B】Bar codes: 0.125 mm, 2D codes: 0.167 mm | ||||
| Reading Distance（※1） | 【MCR-H700R/MCR-H700U/MCR-H701B】 Varies according to minimum cell size（the following） 18 to 27 mm (cell size 0.1 mm:) / 0 to 30 mm (cell size 0.125 mm and larger) |
|||
| 【MCR-H710R/MCR-H710U/MCR-H711B】 Varies according to minimum cell size (see below). Barcode: 0-70 mm (cell size 0.125 mm), 0-100 mm (0.25 mm) 2D codes (QR): 10 to 35mm (cell size 0.167mm), 0 to 60mm (0.25mm) |
||||
| Read area |
【MCR-H700R/MCR-H700U/MCR-H701B】 |
|||
※1 When using our specified symbols. The distance is based on the reading window area.
※2 With a new battery, one scan every 3.6 seconds at room temperature witah maximum specified illumination. Tested to our standards, not guaranteed.
※3 If the ambient temperature is outside the specification range, the battery may not be recharged.
※4 These are test values and not guaranteed values.
Reading distance
| 【MCR-H700R/MCR-H700U/MCR-H701B】 Depends on the minimum cell size (see below) 18-27 mm (cell size 0.1 mm:) / 0-30 mm (cell size 0.125 mm and above) |
| 【MCR-H710R/MCR-H710U/MCR-H711B】 Depends on the minimum cell size (see below) Barcodes: 0-70 mm (cell size 0.125 mm), 0-100 mm (0.25 mm) 2D codes (QR): 10 – 35 mm (cell size 0.167 mm), 0 – 60 mm (0.25 mm) |

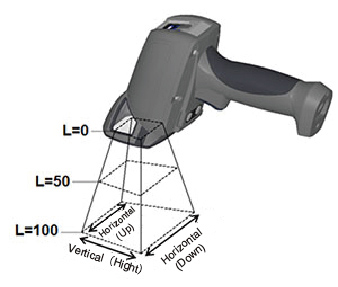

Viewing width/distance (reading area)
【MCR-H700R/MCR-H700U/MCR-H701B】
| Reading distance | 0mm | 30mm |
|---|---|---|
| horizontality | 32mm | 44mm |
| Vertical (height) | 24mm | 34mm |
【MCR-H710R/MCR-H710U/MCR-H711B】
| Reading Distance | 0mm | 20mm | 50mm | 70mm | 100mm |
|---|---|---|---|---|---|
| Horizontal (top bottom) | 34mm | 44mm | 56mm | 66mm | 80mm |
| Horizontal (lower bottom) | 44mm | 56mm | 74mm | 86mm | 108mm |
| Vertical (height) | 30mm | 37mm | 48mm | 56mm | 70mm |
Various downloads
Manuals, drivers and tools for this product are available for download. You will need to enter your customer details to download.
